Prefabricated Steel Structure Chicken Broiler House

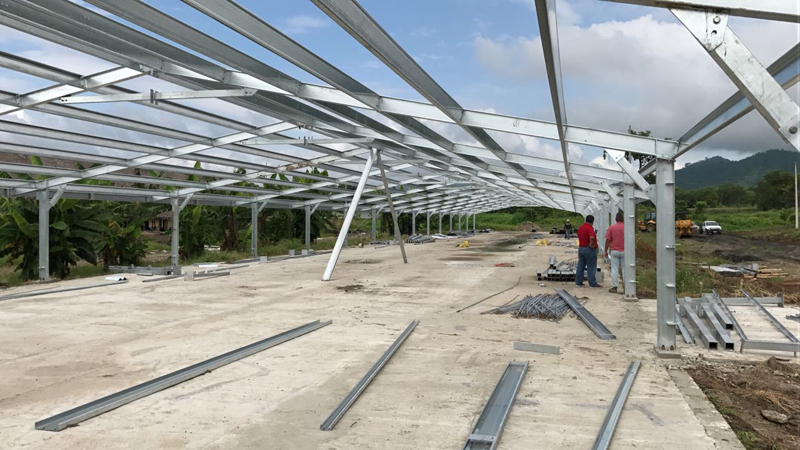

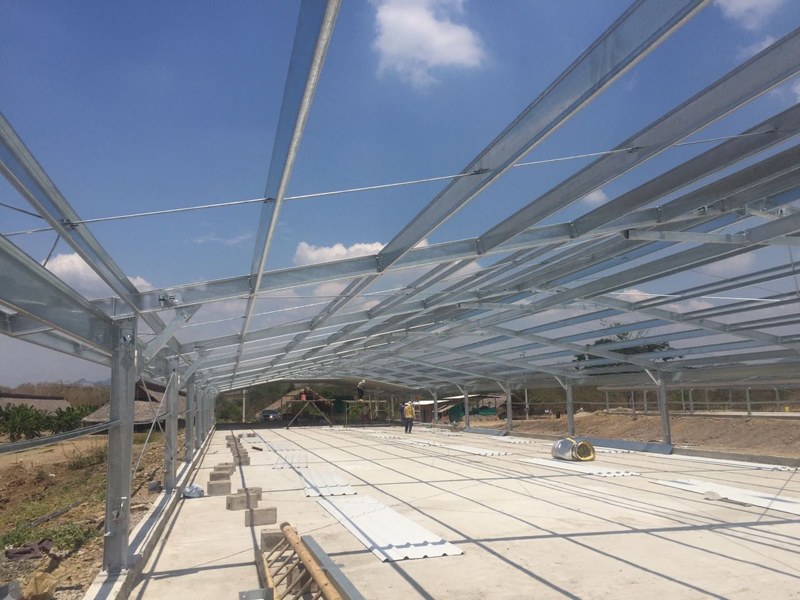

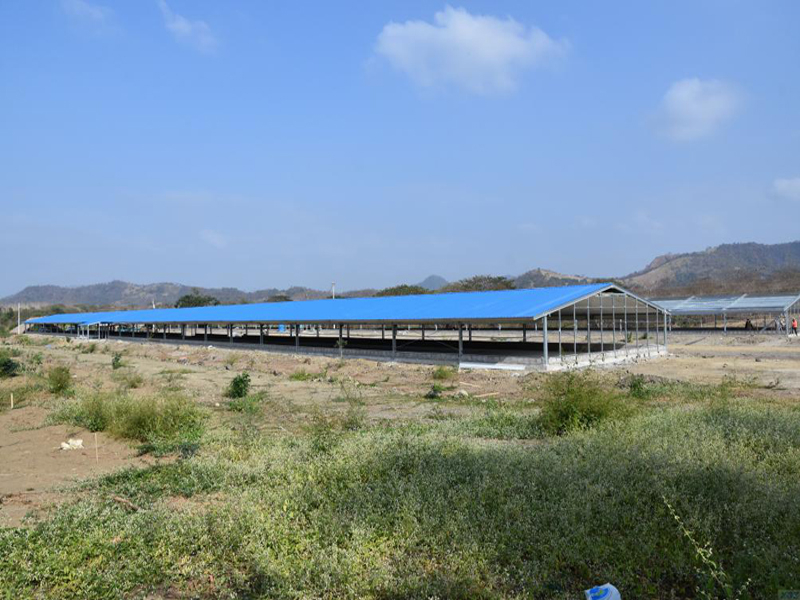

Prefabricated broiler house covers an area of 2100 sqm. Construction site in Ecuador. Now 2 sets of chicken houses have already started to raise broiler, another 6 sets are under construction.
Availability:

Prefabricated broiler house features:

1. Chicken house is easy to assemble

2. Equipped with automated controlled system

3. High rearing efficiency, easy operation and maintenance

4. Effectively prevent infectious diseases, and increase the broiler survival rate

5. Save the space and cost-efficient



Description:

1. Size: 150*14*2.55m

2. Column and Beam: I beams with hot-dip galvanization

3. Prefabricated broiler house purlin: Galvanization Z Purlins

4. Secondary Support: Galvanization, e.g. Tie Bracing, Bracing Bars, Angle Steels, all these will improve the stability and durability of the whole structural building

5. Roof cladding: Color-coated Steel Sheet+ Fiberglass Blanket as insulation+ Inner Steel Sheet

6. Gable Wall: Steel Sheet+ Fiberglass Blanket+ Steel Sheet

7. Side Walls: Steel Mesh

8. Service: chicken house design, fabrication and erection on site

9. Steel structure chicken house design composed of:

A. Main feeding system

This system delivers feed from the silo to the hopper in the chicken broiler house. There is one feed sensor at the end of the main feed line which controls the motor on and off automatically to release automatic delivery.

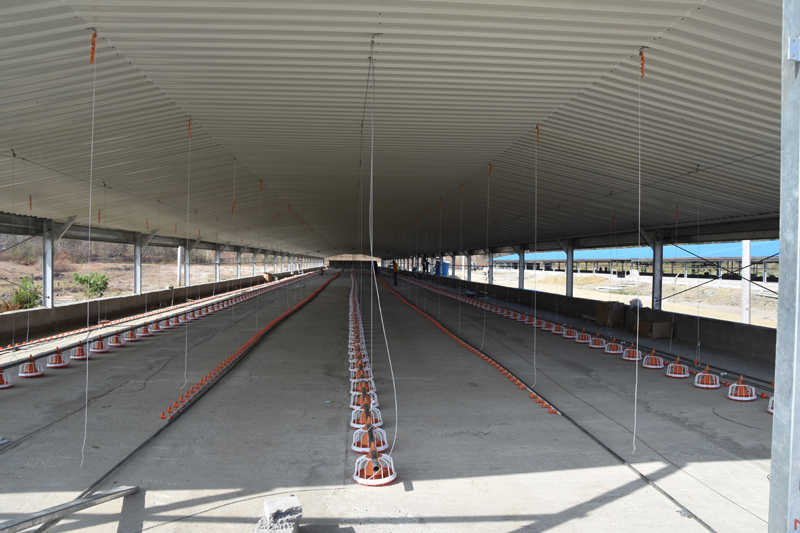

B. Poultry feed pan system

This system delivers feed automatically through the motor under the control of feed sensor, which ensures birds feeding during the whole growing period.

C. Nipple drinking system

This system can provide fresh and clean water for poultry which is crucial for the growth of broiler. The drinkers can be triggered from 360 degrees which helps young birds start well and makes drinking easier.

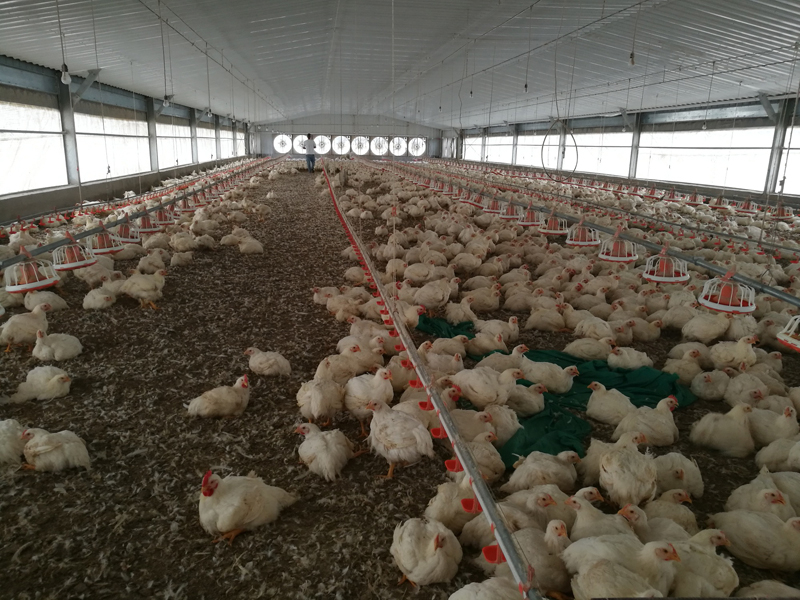

D. Ventilation system

This system controls climate conditions, fresh air, humidity and temperature in a chicken house, it is vital for growing birds. This system includes chicken house fan, Cooling pad, Air inlet window.

E. Environmental control system

This system saves labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment.

F. Spraying system

This system effectively cools, humidifies, deducts and disinfects the broiler house (the temperature is quickly reduced by 3-8 degrees centigrade within a few minutes).
