Commercial Poultry Shed with Slated Floor

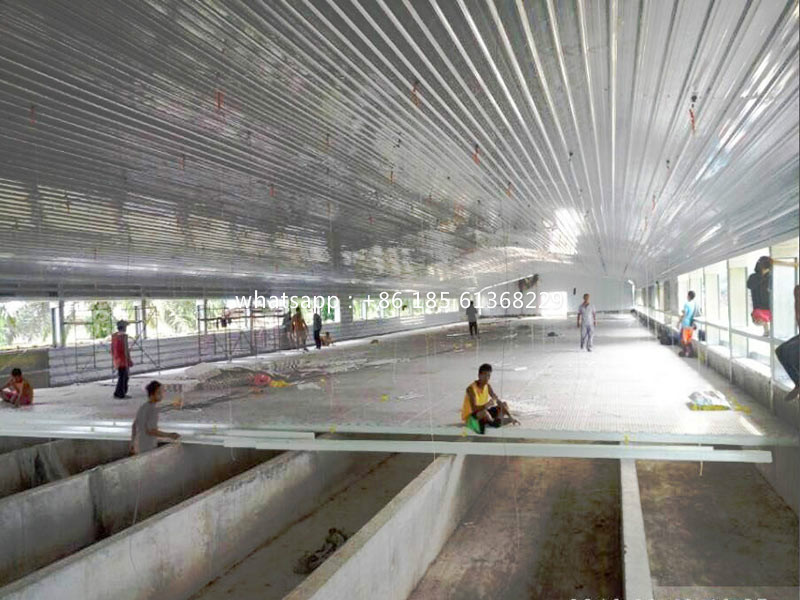

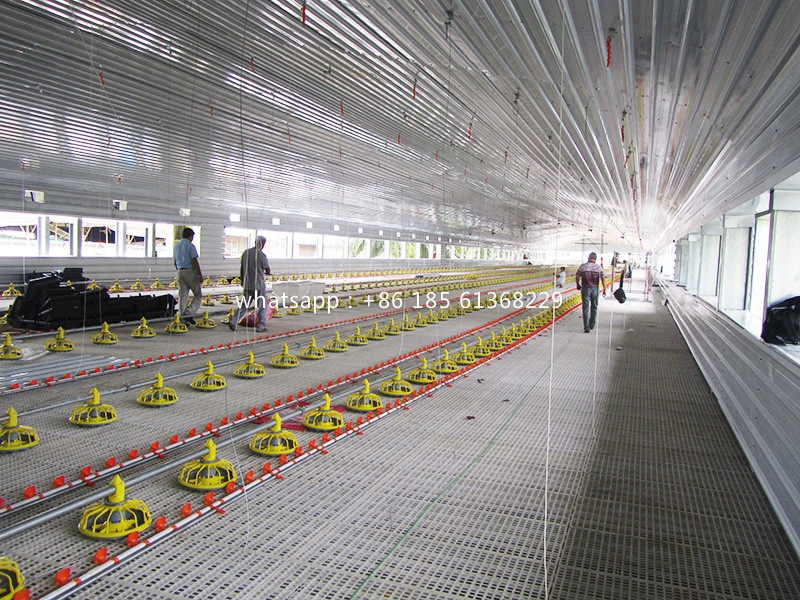

Commer poutlry broiler shed is designed with slated floor system. The animal manure can cleaned out daily and keep the environment in a good state. The breeding equipment in the shed including automatic manure scraper, plastic poultry floor, auto feeding system, water drinking system and automatic ventilation system.

1. Automatic feed delivery system

Steel Feed silo/manpower hopper is the beginning of main feed lin

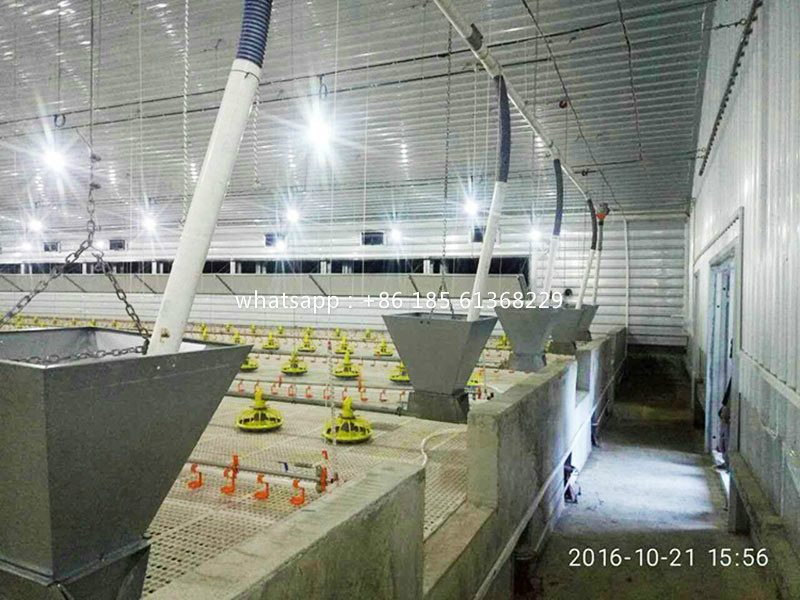

2. Auto pan feeding and feeder system

Automatic Pan feeding line system consists of hopper, motor, feed pipe and auger .

Performance parameters of feeding line system

3. Automatic nipple drinking line system

This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry. The stem of nipple drinker can rotate freely at 360 degree to meet bird water demand of different period .

4. Automatic ventilation fan system

This system controls climate conditions, fresh air, humidity and temperature in poultry shed, it is vital for growing birds. This system include Poultry house fan, Cooling pad, Air inlet window

5. Environment control system

This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment

6. Spraying and disinfecting system

This system effectively cools, humidifies, dedusts and disinfects the hen house(the temperature can quickly reduced by 3-8 degrees centigrade within a few minutes)

7.Cooling pad

When the air goes through the pad, the heat will be took down by the evaporation of water, so the air will be cooled before going into the chicken farm.

8. Heating system(heater):

Proper temperature is critical to chickens, especially day-old chicks, we have different kindsof heater for poultry house. There are Natural gas (LNG)fired heater, diesel fired heater, and(LPG) fired heater electricity fired heater for your option.

 9.Curtain system:

In some tropical zone, the farmers are inclined to use curtain instead of real walls(open farm),they will not use big fan accordingly.

Our curtain have two kinds for your choice, manual operated one and motorized one.

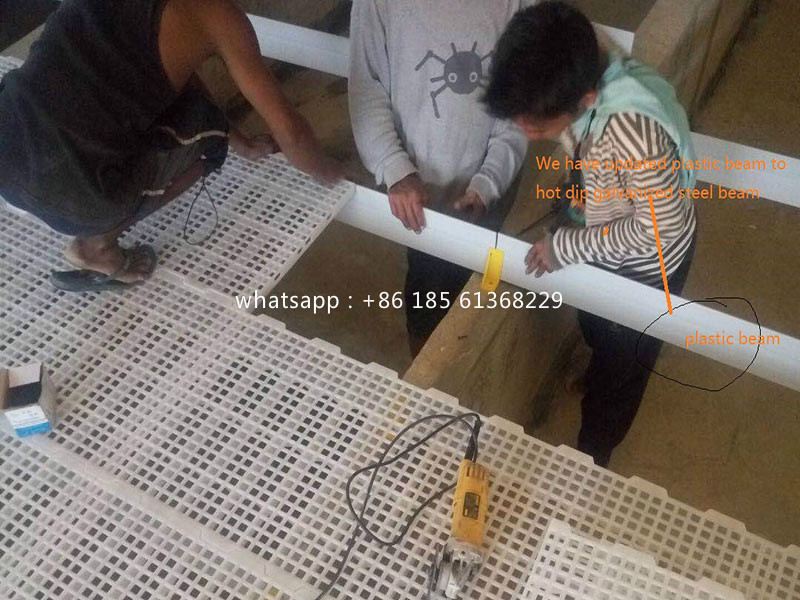

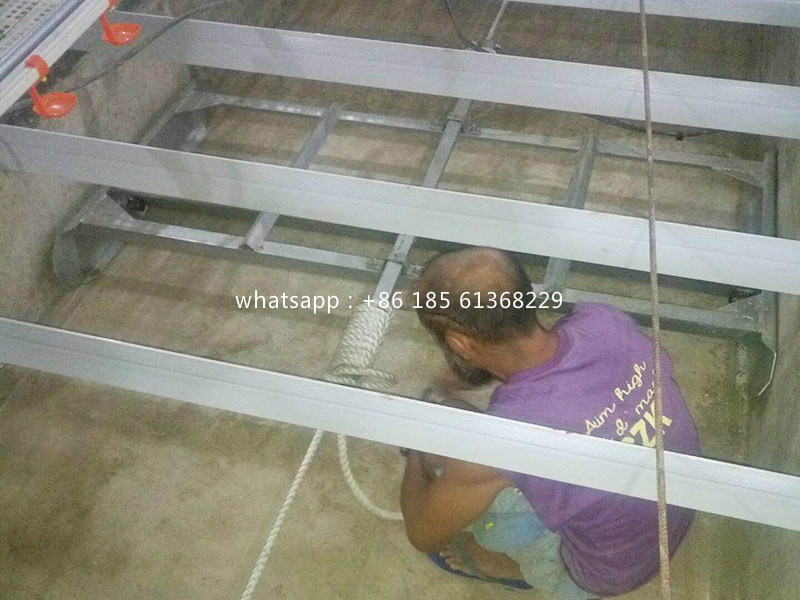

10. Slated poultry fooring system

Plastic floor and automanure scraper have been equiped in the poultry shed to protect the birds from disease  .


What information you are supposed to provide to get a quick price?

a.    farm land size (Length*width )

b.    chicken house size: (Length*width*height for breeding area )

b. Quantity of chickens in one house

c. Weight of chickens while for sale

d. Chicken farm location and local climate condition (temperature, humidity...)

e. desenty: birds per m2

Warranty :

1. all plastic products are made of virgin raw material such as the feed pan , water drip cup ,clips , air inlet  15 years

2. Nipples: 10 years

3.The accesorries such as the bolts, nuts, pulley, water winch, rope clips are stainless steel

4. Feed motors from Italy brand Transtechno or Taiwan Brand

5. Auger from South Africa technical system

6. Feed sensor from Germany

7. Control box :Schneider brand or china ZhengTai brand
