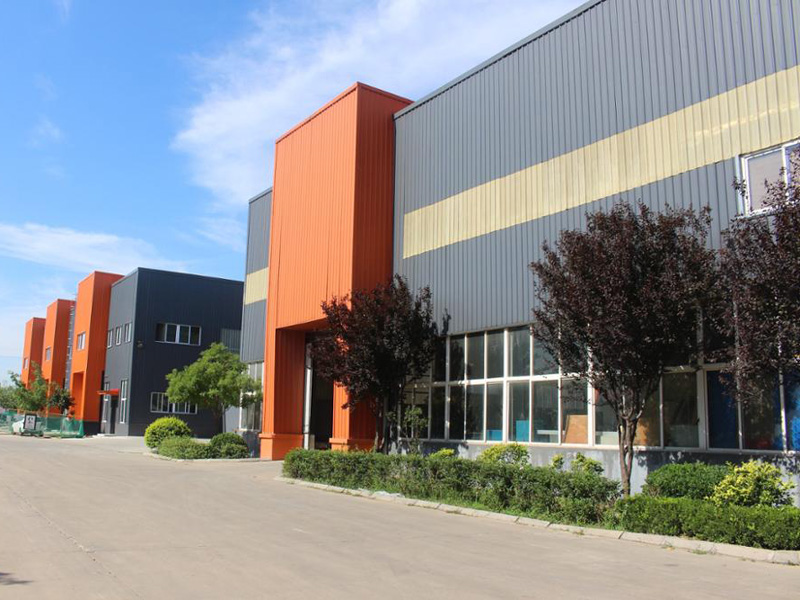

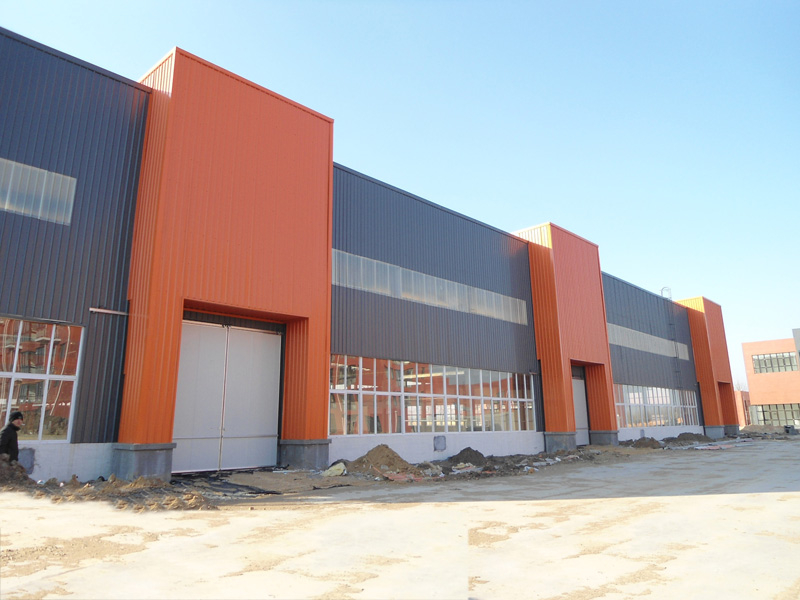

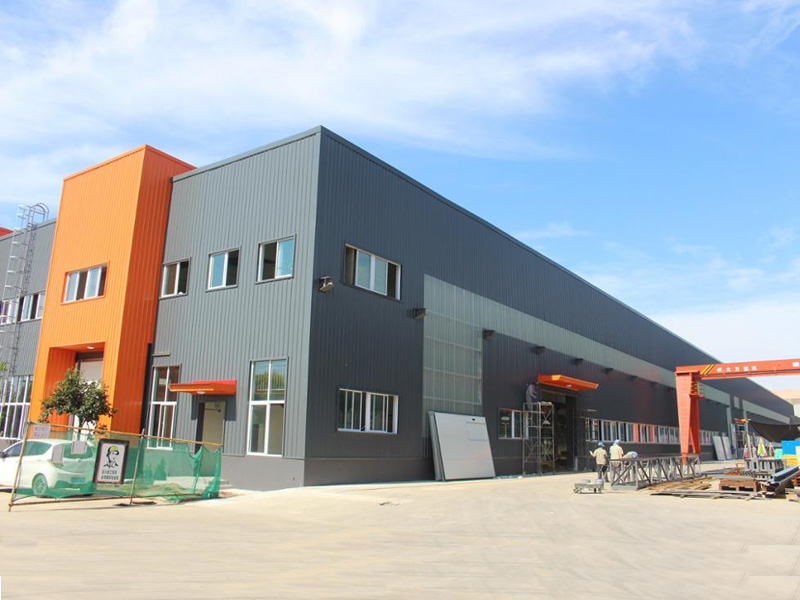

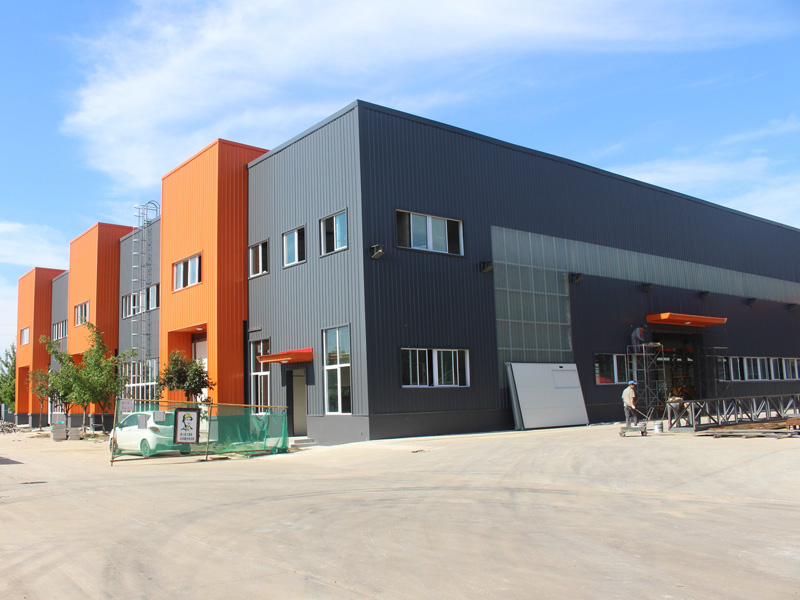

This prefabricated workshop construction area 10,374 sqm with 12.4m-high, located in Qingdao, China. Steel workshop cladding materials of roof and wall are 100mm-thick fiber-glass wool with two layers of metal steel sheets.
Steel workshop features
1. Portal frame structure system
2. Fire-proof rating: water-like anti-fire painting Level
3. Friendly environment protection.
4. Beautiful appearance
Prefabricated workshop description
1. Building area:10,374 sqm
2. Steel workshop size: 180.48*57.48*9.6m-12.4m(parapet wall height)(1/10 slope)

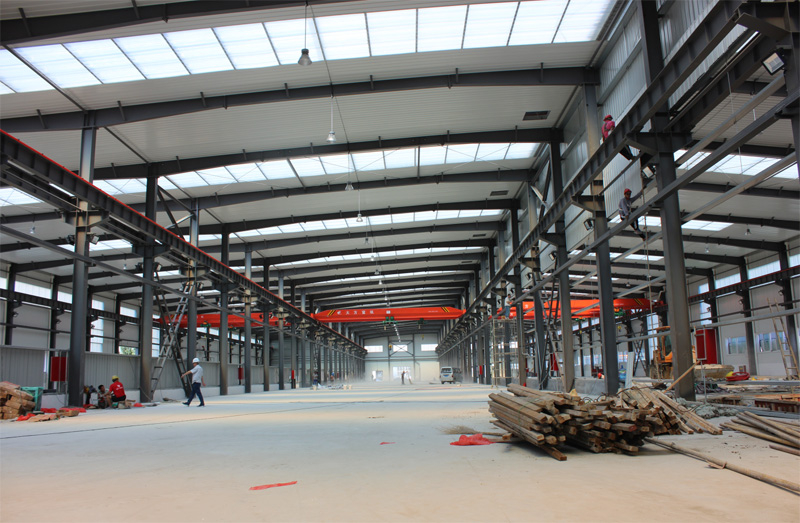

3. Main steel framing: welded H column and beam with two coats of mid-grey and fireproof coating painting
4. Secondary framing: Z purlins & girts Galv, eave struts, wind bracing, flange bracing, base angles, clips and other miscellaneous structural parts
5. Steel workshop roof protection material: V760, 0.5mm(outside metal sheet), red color/100mm fiber-glass wool/V-900, 0.4mm(inside metal sheet), white-grey color
6. Wall protection material: V840, 0.5mm(outside metal sheet), metal color/100mm fiber-glass wool/V-900, 0.4mm(inside metal sheet), white-grey color
7. Lighting system: skylight sheet

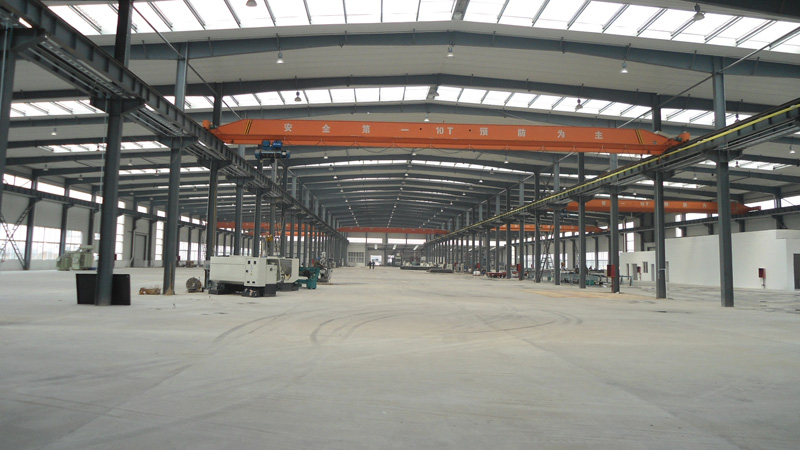

8. Crane: 4 set 10 ton
