Prefab Metal Warehouse Building

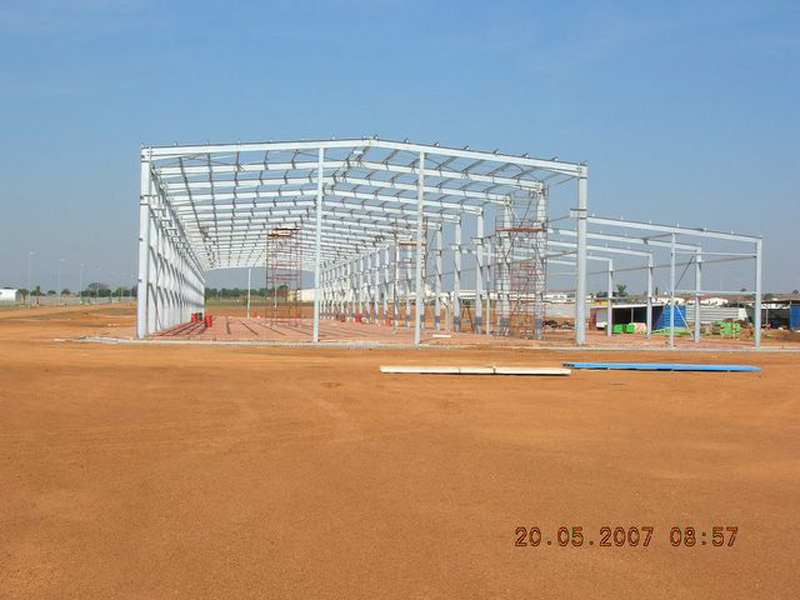

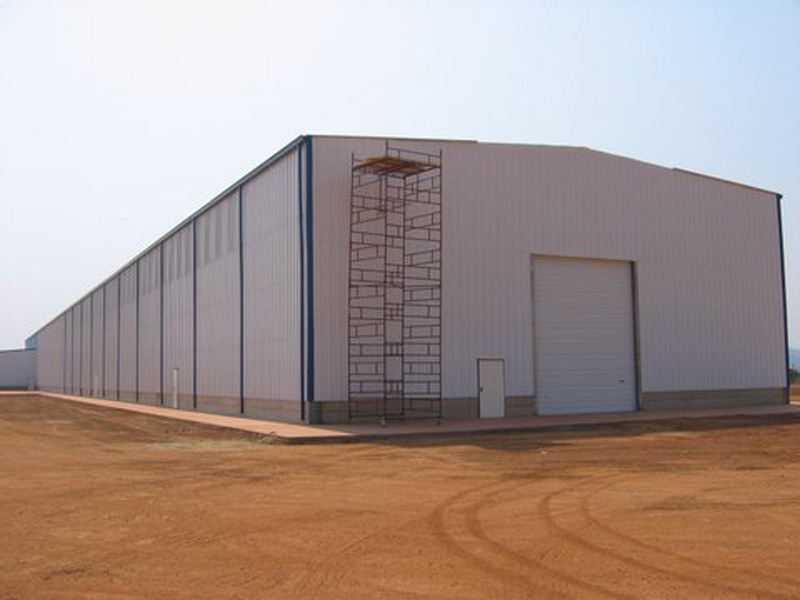

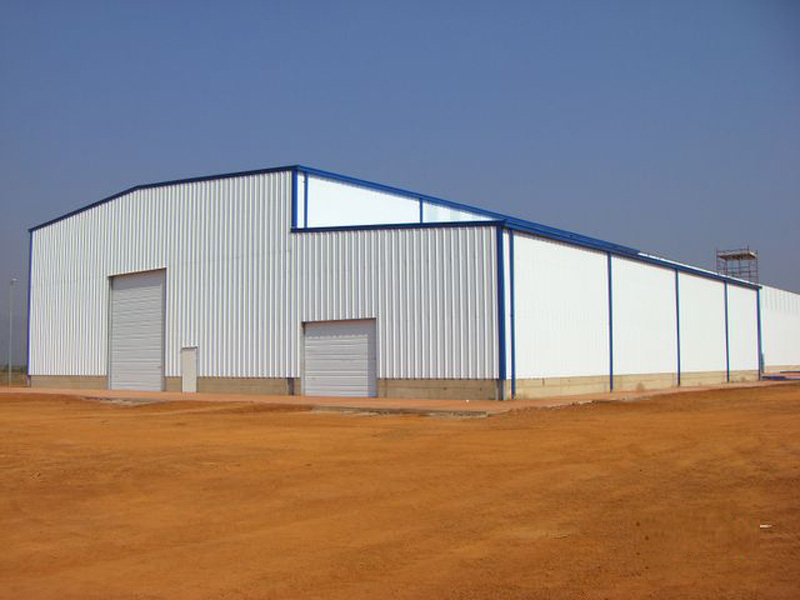

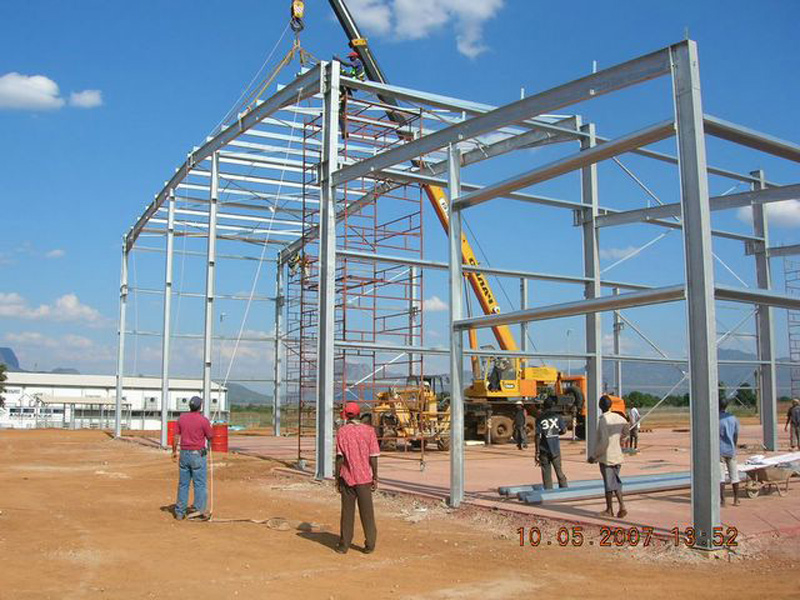

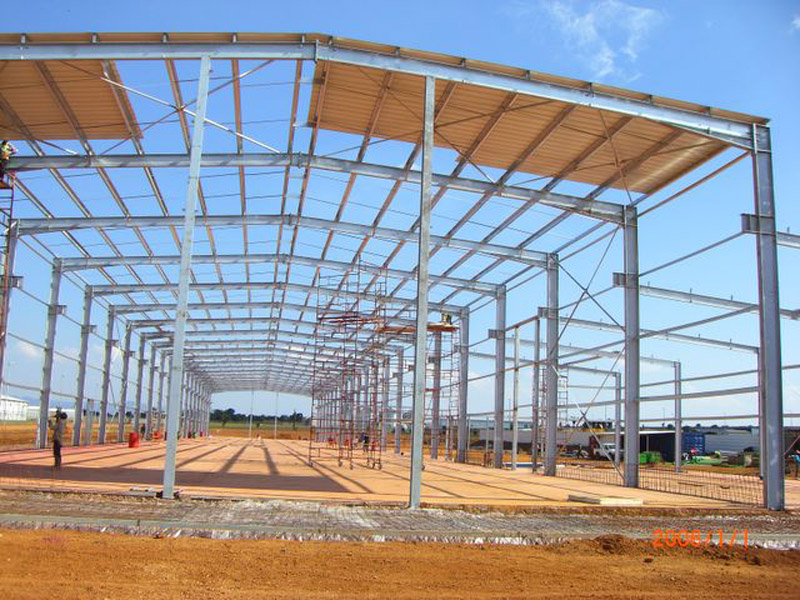

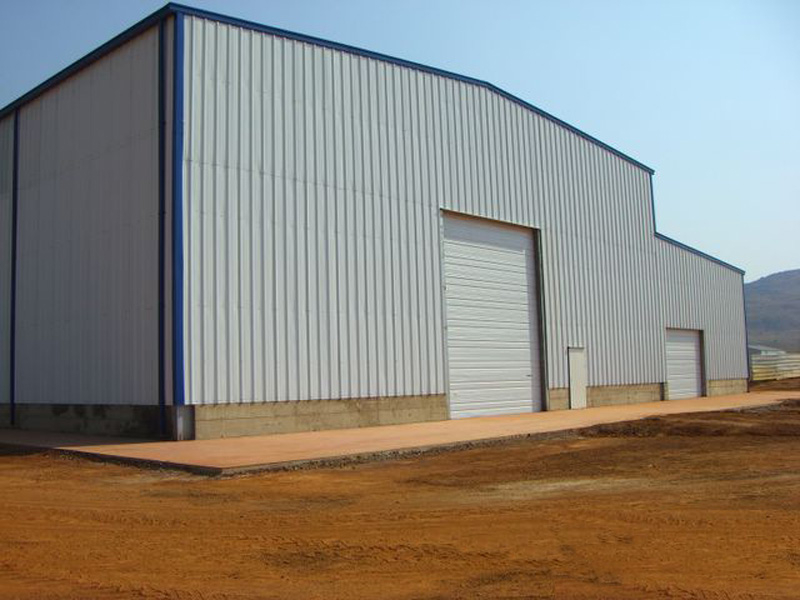

Prefab warehouse covers an area of 4752 sqm, construction place is Angola, prefab warehouse building adopts light steel structure system, steel frame is covered by fireproof painting to get better anti-fire effect after erection.

Prefab metal warehouse features:

1. Lightweight, good anti-fire effect

2. Easy construction, time-saving, and labor-saving

3. Long using life

Prefab warehouse details:

1. Main warehouse: 144*23*9.5m(Length*Width*Height)

2. Affiliated warehouse: 144*10*6m

3. Primary steel framing: welded H section steel with primer and facing anti-rusting painting, which will be bolted together at the site

4. Prefab warehouse building secondary framing: C purlin, tie bar, roof and wall support are formed as secondary framing

5. Bracing: round steel is supplied with knee bracing and other supporting parts, which will improve the stability and durability of the whole structural building

6. Surface treatment of steel framework: fireproof paint

7. Roof and wall cladding: 0.5mm color-coated metal sheet, white color with blue trim and flashing

8. Ventilation system: roof ventilator

9. Door: rolling shutter

10. Brick wall: 0.8m high

11. Prefab warehouse surface treatment of steel framework: fireproof paint
