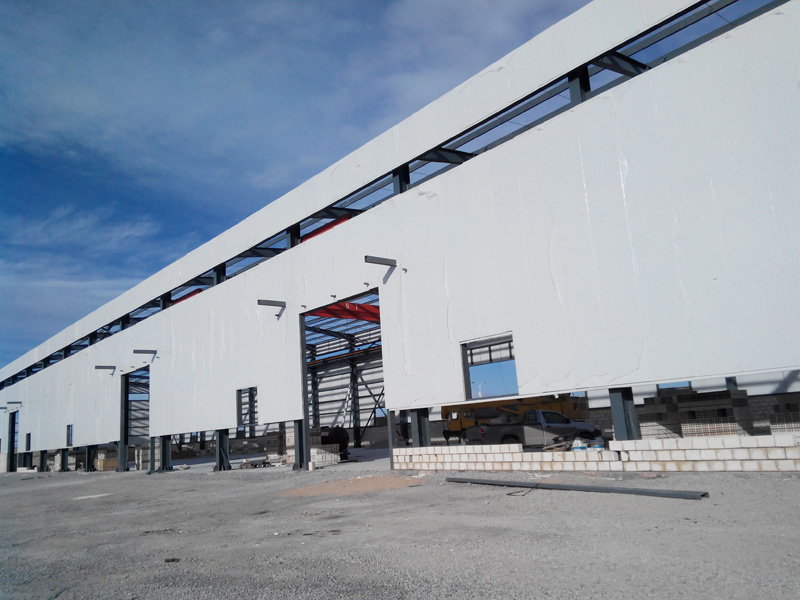

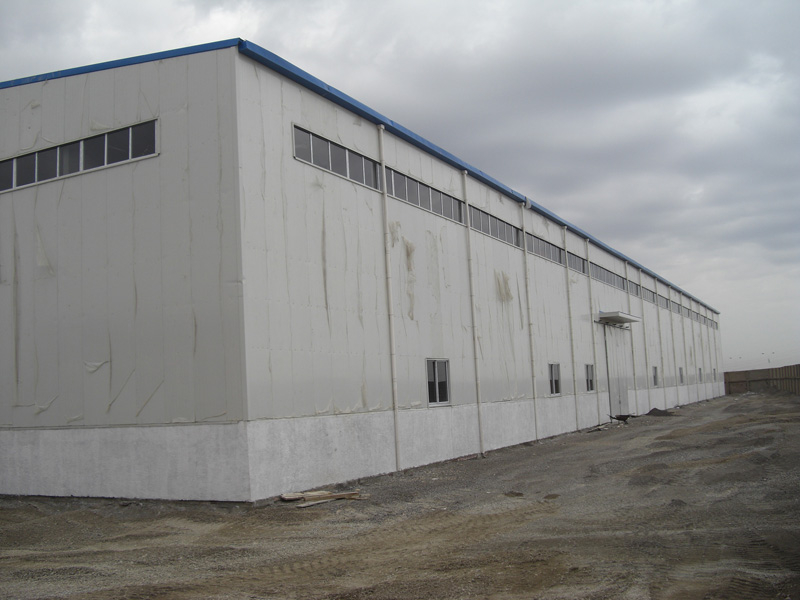

Prefabricated warehouse buildings features:
1. Structural type: portal frame system
2. Resistance rating: level 2
3. Long service life: durable years of main frame is 50 years.
Prefabricated warehouse building details:
I. Warehouse buildings design load
2. Wind load:0.5KN/m2, snow load: 0.2KN/m2
3. Frame live load: 0.3KN/Sqm, purline live load:0.3KN/Sqm

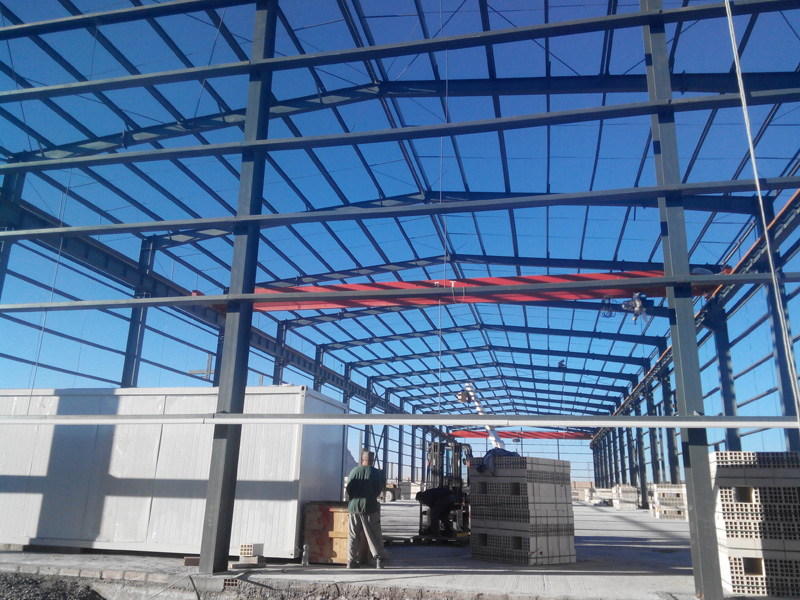

II. Prefabricated warehouse building main steel frame
1. Beam, column and crane beam: Welded H Section steel Q345B with two coats mid-grey waterproof painting
2. Wall and roof purline: C Section steel with two coats mid-grey waterproof painting

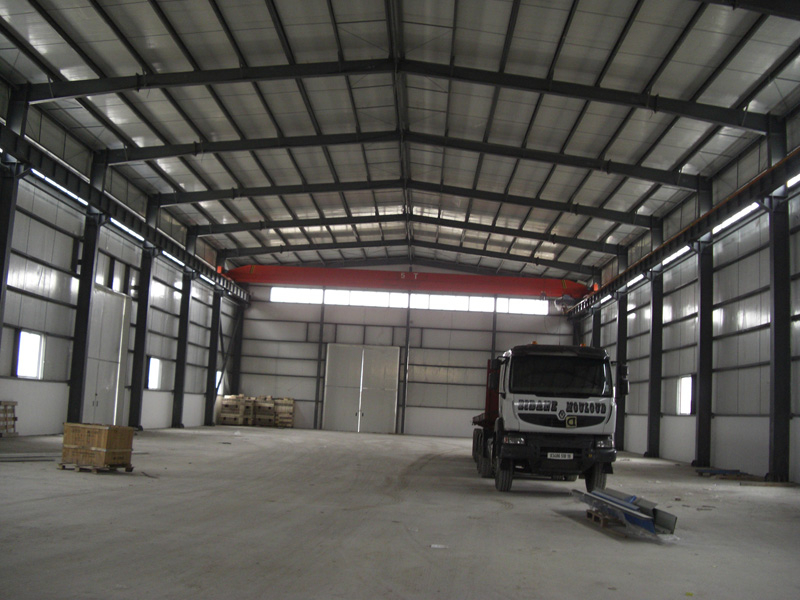

3. Crane: 2 sets, 5 tons/Set, span:22.5m, length:105m, max. lifting height: 6m

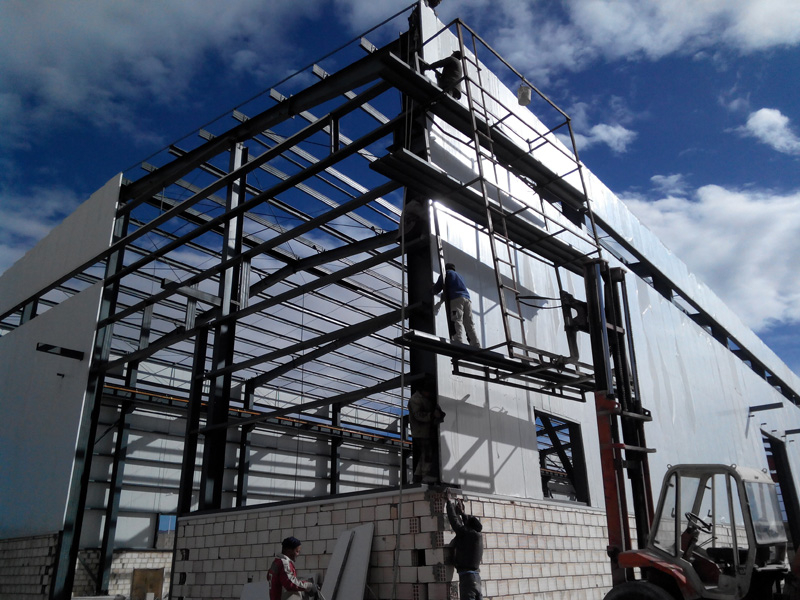

III. Prefabricated warehouse building wall and roof maintenance

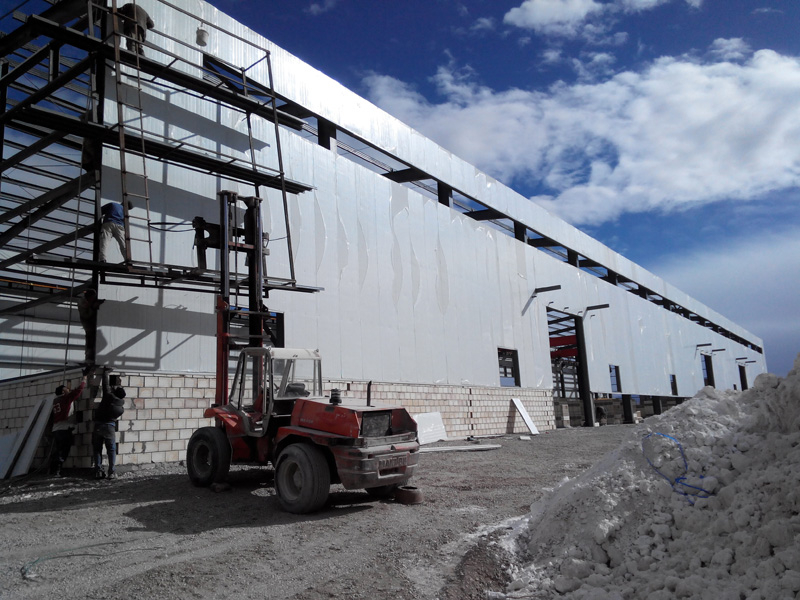

1. Wall panel: V-950,0.5mm/50mmEPS/0.5mm
2. Roof panel: V-960,0.5mm/50mmEPS/0.5mm
III. Supporting part
Tib bar, roof horizontal bracing, column bracing, knee-bracing, casing pipe, round bar, all these will improve the stability and durability of the whole structural building
IV. Doors and windows
1. door: sandwich panel sliding door
2. Window: plastic steel window
