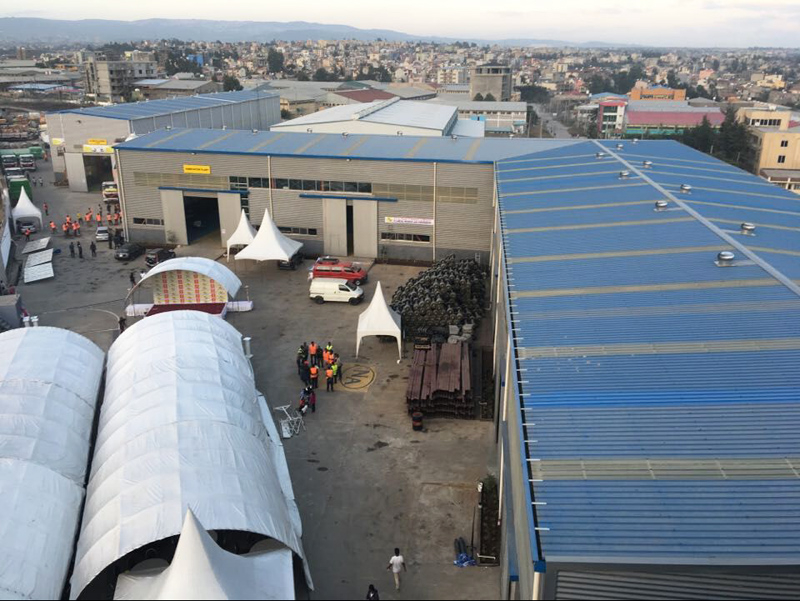

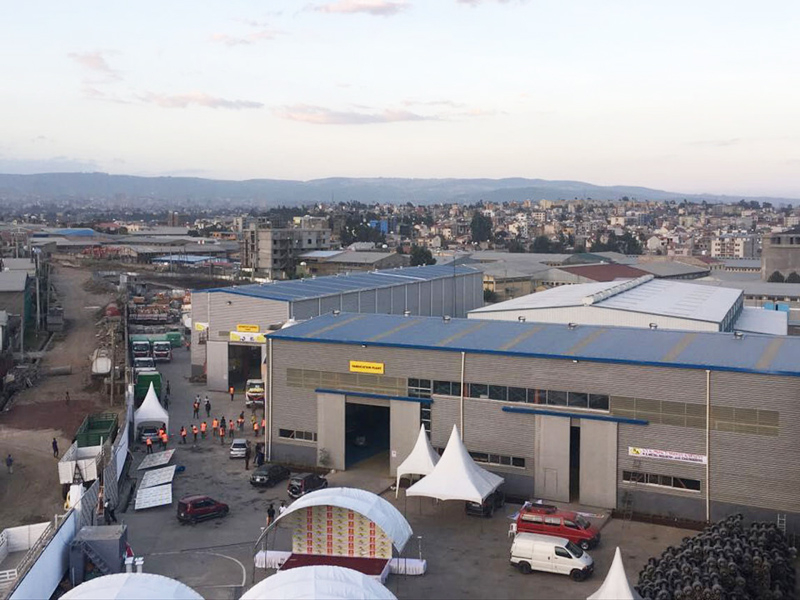

Truck accessories workshop and assembly plant features,
1. Structure type: portal steel frame structure with crane and platform
2. Size: 47.715*23.062*8.85m Length*Width*EaveHight）
3. Design loads:
Wind load: 0.8KN Per Sqm, Snow load: no, Roof dead load: 0.25KN Per Sqm, Roof live load: 0.3KN Per Sqm
4. Construction site: Ethiopia
Truck accessories workshop assembly plant details:
1. Primary structural framing: Q345B, H section steel column, beam and crane beam,which are treated with two coats of red-lead painting
2. Secondary structural framing: purlins and girts with galvanized C profile, eave struts, knee bracing, wind bracing, flange bracing, base angles, clips and other miscellaneous structural parts.

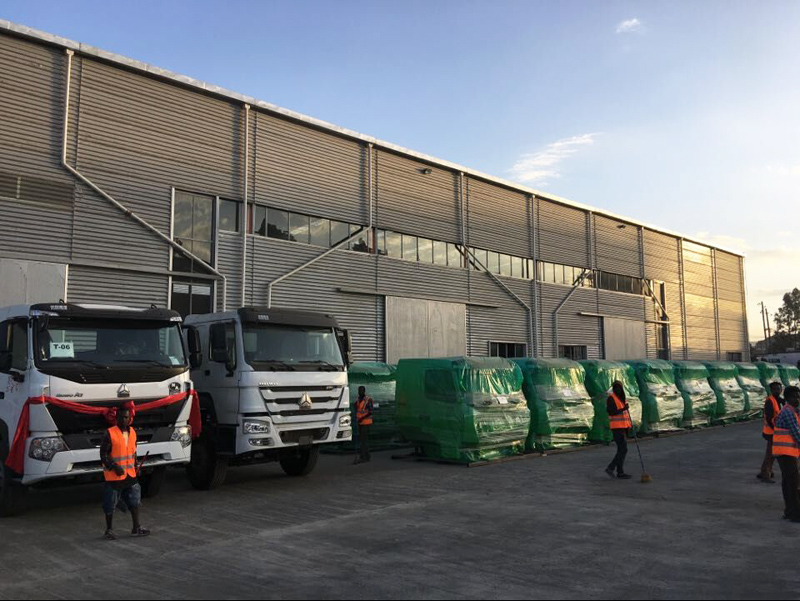

3. Wallcovering: V-780type 0.5mm white grey
4. Roof cladding: V-840type 0.5mm sea blue and skylight panel
5. Window: Aluminum alloy fixed window Aluminum sliding window

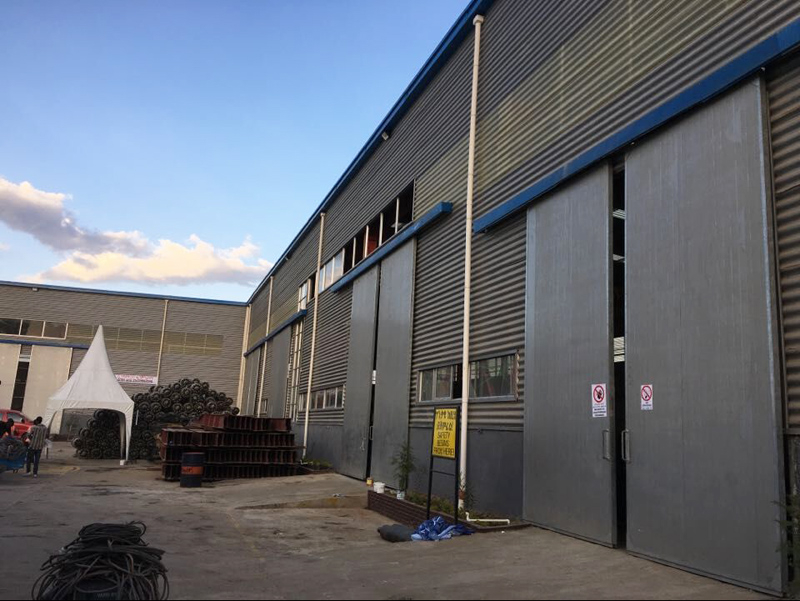

6. Door: sandwhich panel sliding door and swing door
7. Workshop plant usage: Sinotruk accessories fabrication and assembly
