1000 Square Meter Steel Office Warehouse Building

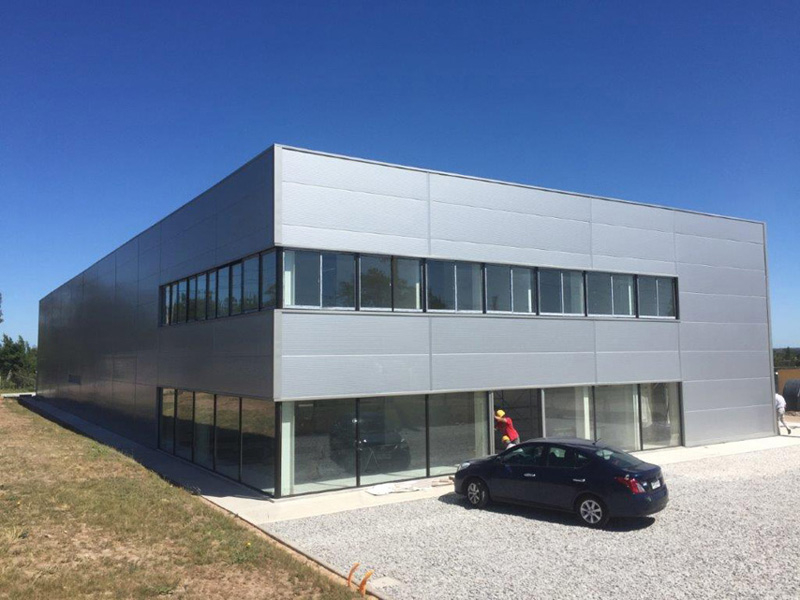

This warehouse project covers 1200sqm with mezzanine office inside, construction site in Montevideo, Uruguay, roof and wall are PU sandwich panels and self-designed ventilation monitor on the roof, thermal insulation sliding window.

Steel office warehouse building features

1. Two-story warehose with office in side

2. Excellent insulation and fireproof performance

3. Aesthetically appearance and durable

Office and warehouse description

1. Design Parameters:

    Size: 50*20*7.15m; Wind load: 158 km/h; Roof load: 25kg/m2; Steel amount: 50 T;

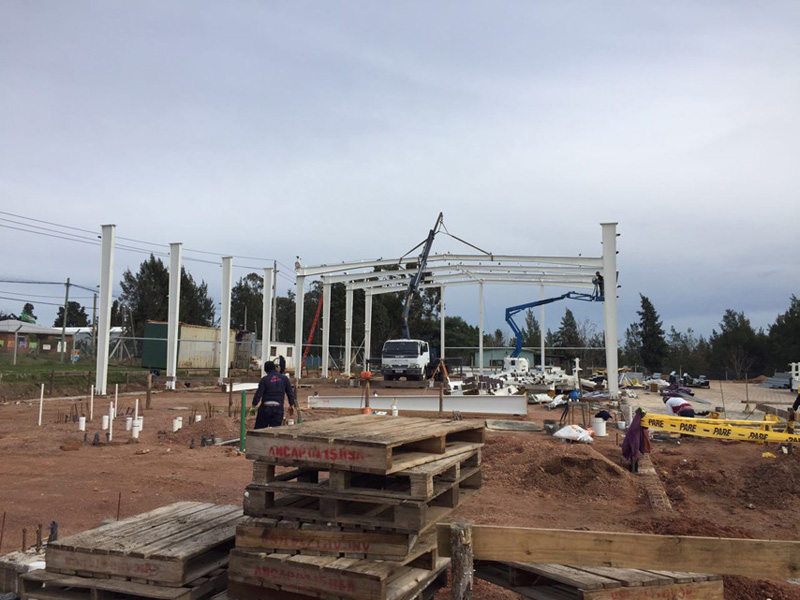

2. Primary steel frame: H steel column and beam with epoxy painting

3. Secondary steel framing: C purlins with galvanized surface treatment

4. Support structural Part: Tie Bracing, Bracing Bars, Angle Steels, all these will improve the stability and durability of the whole structural building

5. Mezzanine system: H secondary beams + steel deck floor sheet

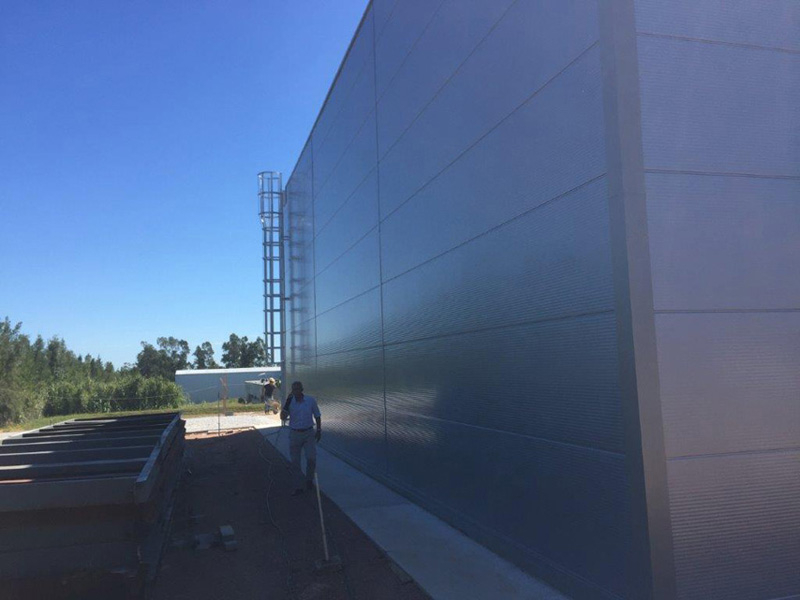

6. Roof and wall materials: PU sandwich panel, 50mm thickness

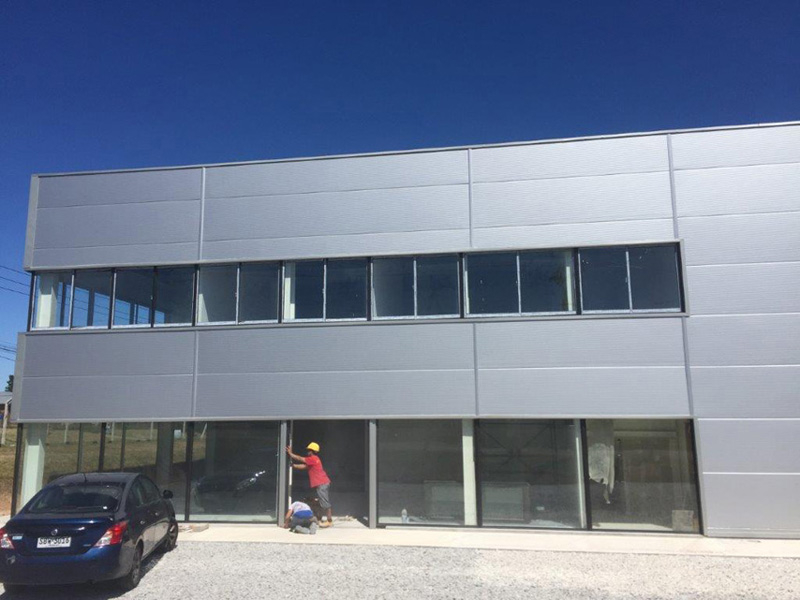

7. Window: Aluminum insulation window with double tempered glass

8. Doors: polyurethane lift door for warehouse entrance, glass door for office
