5-Story Steel Structure Prefab Office Building

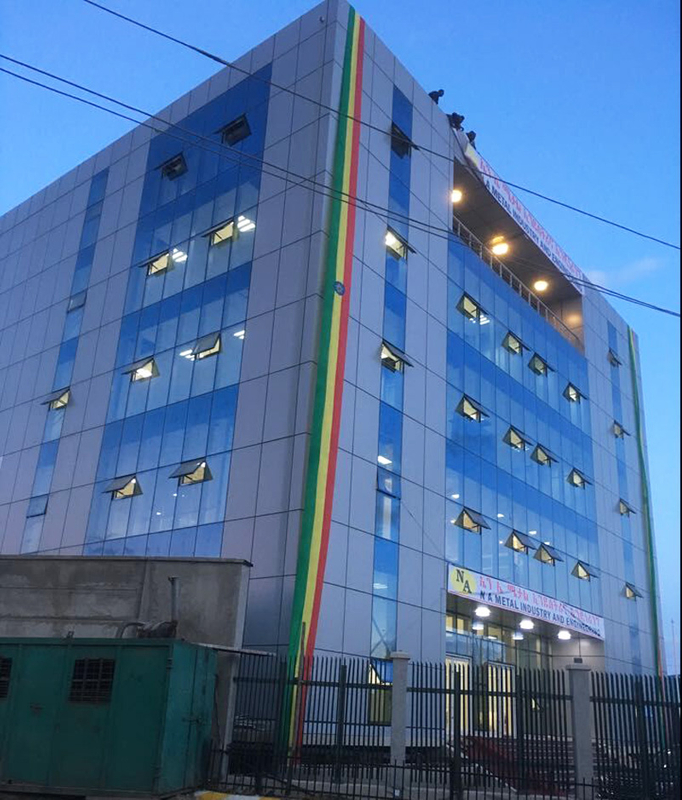

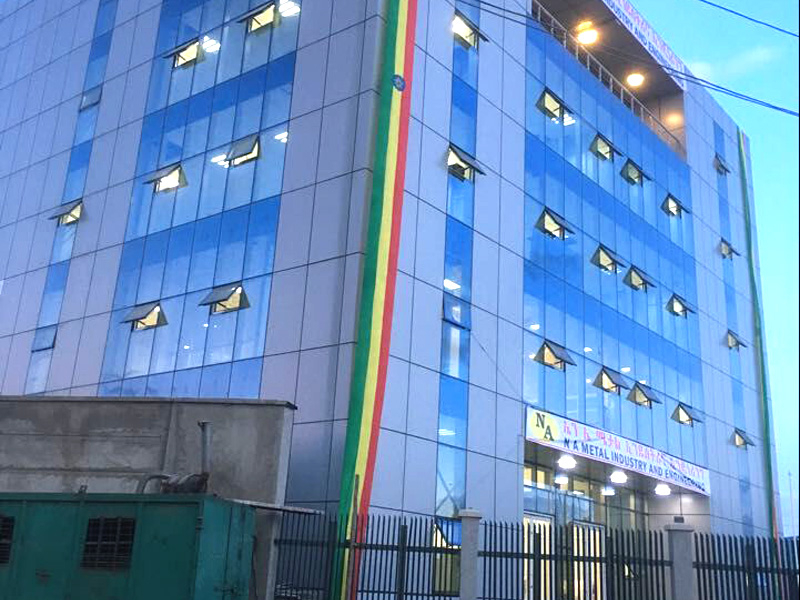

The steel office building is located in Addis Ababa, Ethiopia. After visiting our company, customers are required to build a similar to our company. Total area 1760 sqm, 5-story

Prefab steel office features:

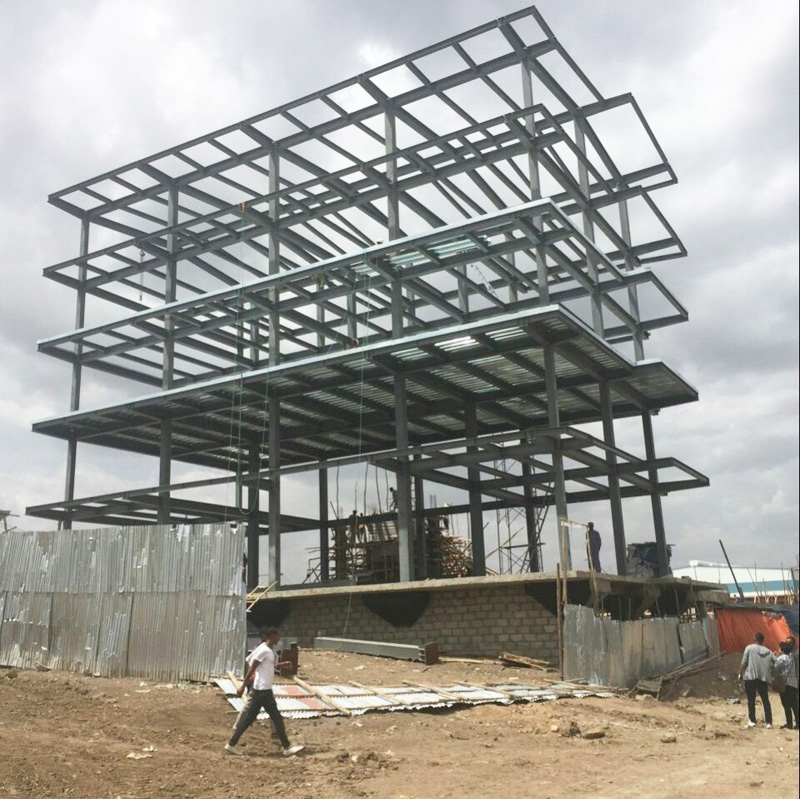

1. Structural system: 5-story steel frame structure

2. Design load: wind load - 0.82KN Per Sqm

3. Cost savings: reduce the overall amount of steel by using a box column as a column

4. Beautiful and elegant looks

Prefab steel office building description:

1. Area:1760 sqm

2. Per layer size: 24.1*14.6*18.5m(Length*Width*Height)

3. Column: Q345B, box column with two coats of mid-grey painting

4. Beam: Q345B, welded H section steel with two coats of mid-grey painting

5. Roof panel: YX-76-344-688 1.0mm, galvanized steel sheet

6. Floor material: H type steel beam + floor deck (YX-76-344-688 1.0mm, Galva sheet)+concrete

7. Prefab office building wall cladding: glass curtain and aluminum composite panel
