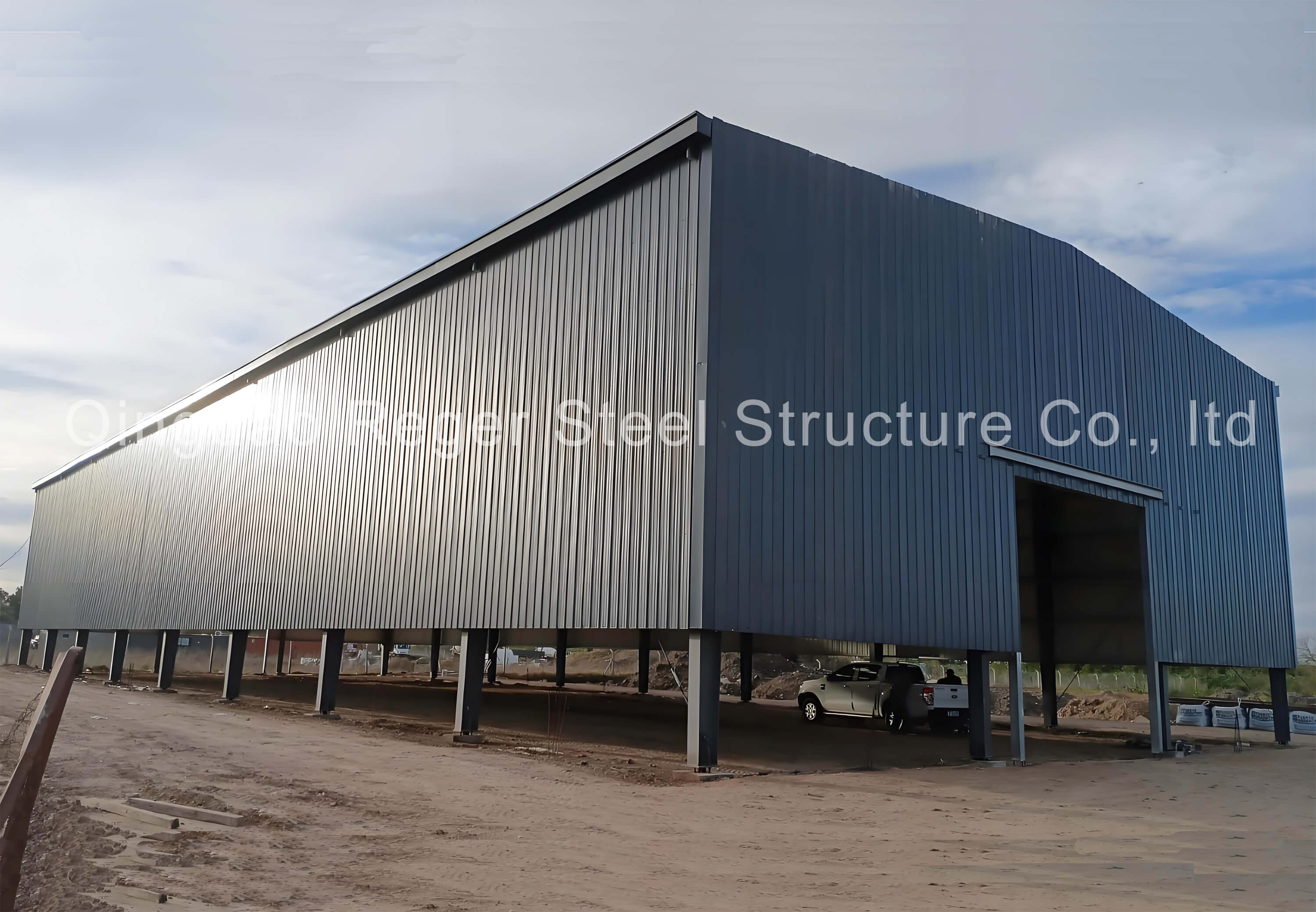

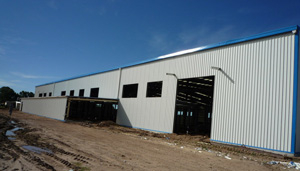

Argentina 1000sqm Steel Structure Warehouse

Steel Structure Warehouse Building Dimensions & Specifications

• Total Area: 1,000 sqm

• Dimensions: Length 50m × Width 20m × Height 9.0m

• Roof Pitch: 10% slope

• Brick Wall: 1.8m

️ Structural System & Components

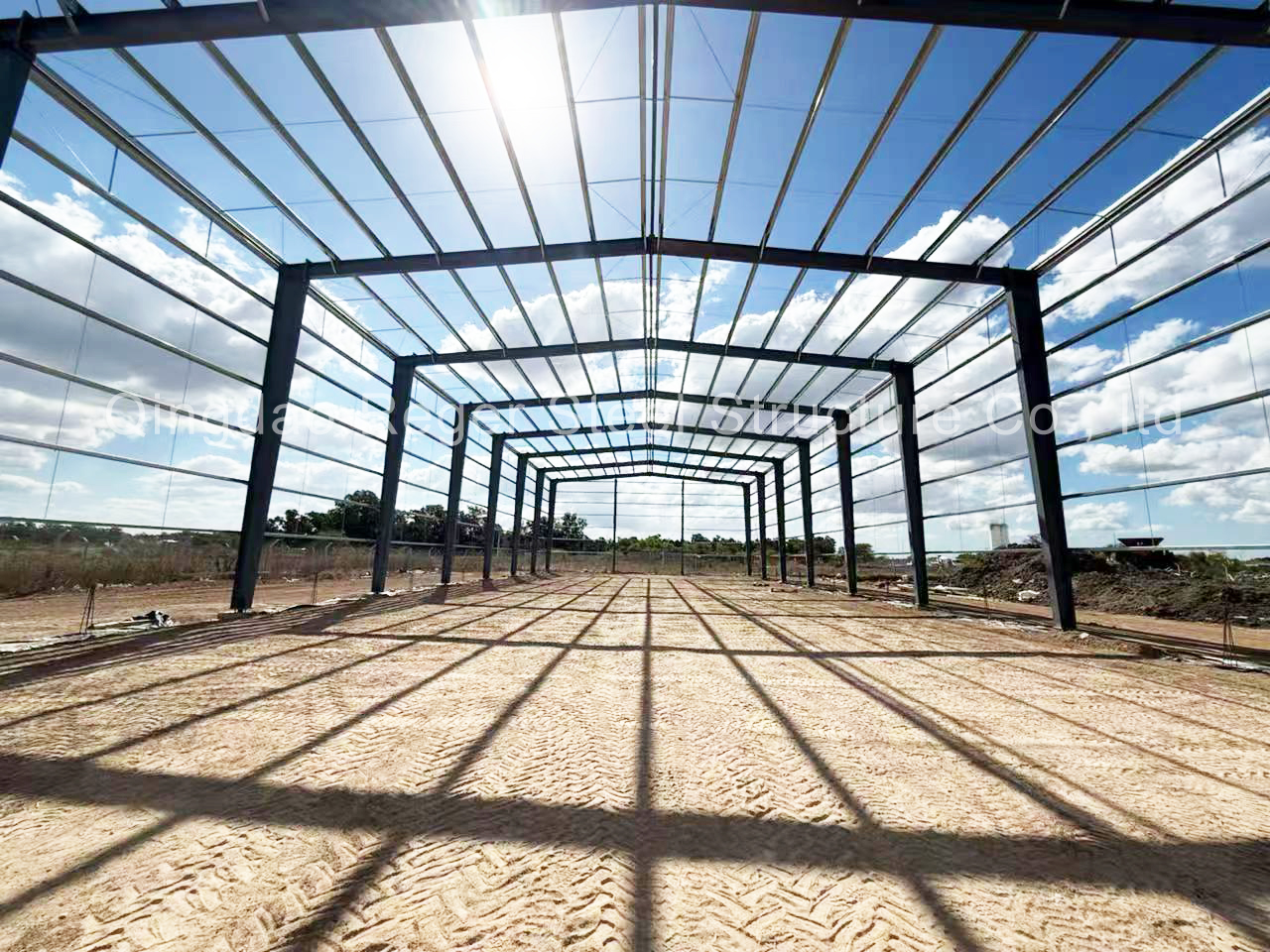

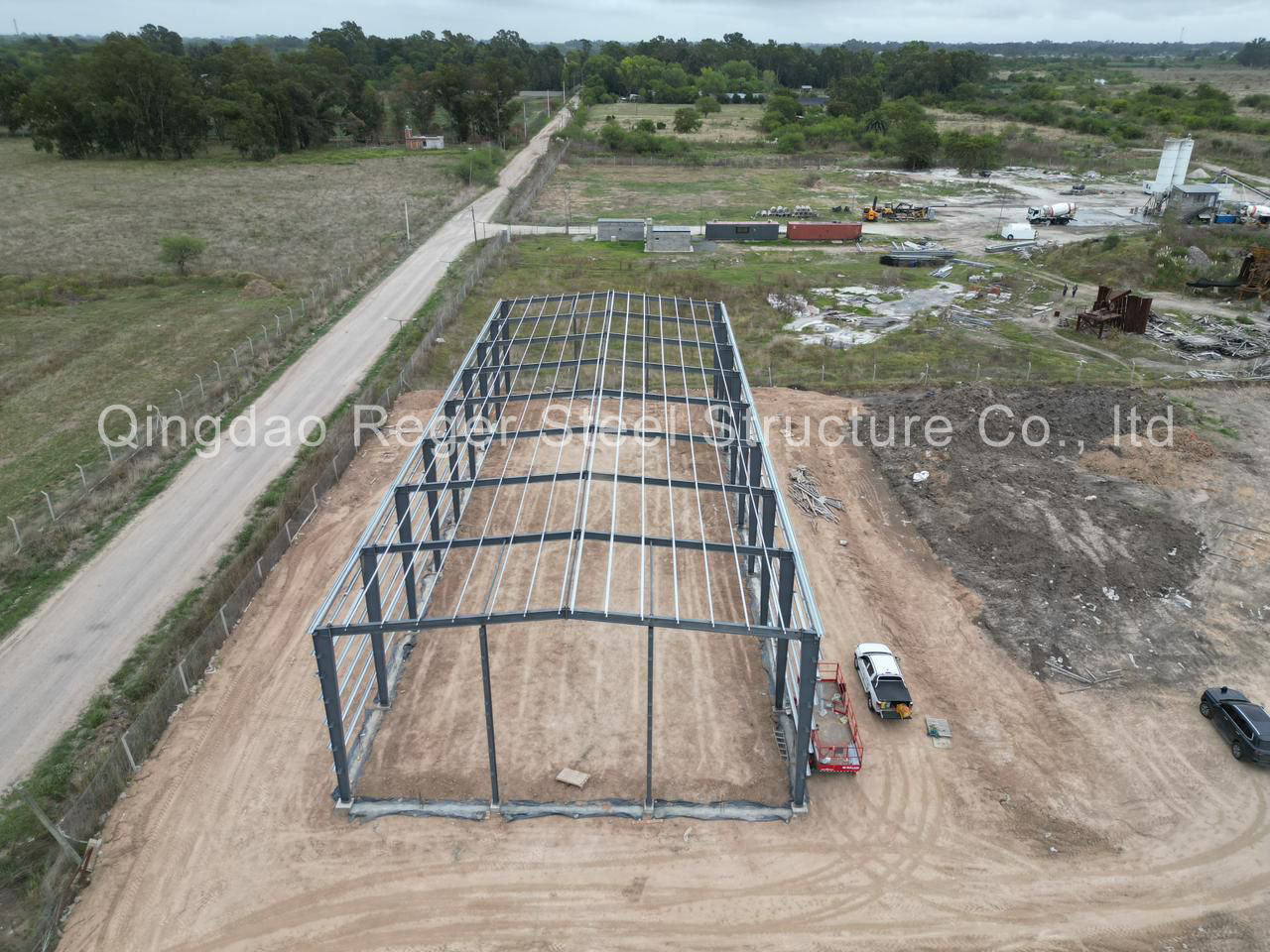

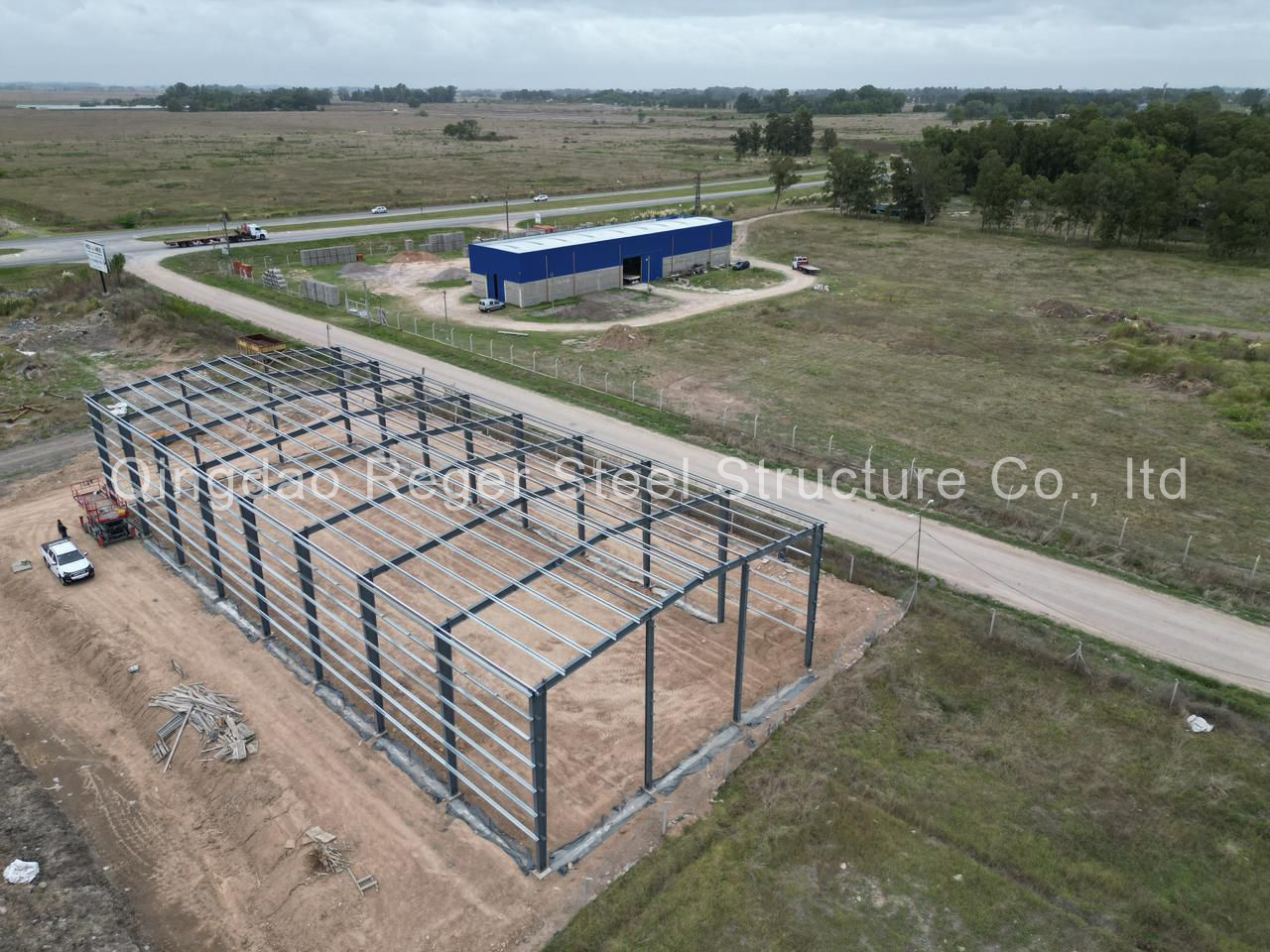

1. Primary Framing (Main Structure)

• Components: Welded H-section steel columns and beams.

• Material Grade: High-strength Q345B steel.

• Surface Treatment: Finished with two coats of premium mid-grey painting for superior corrosion resistance and a modern aesthetic.

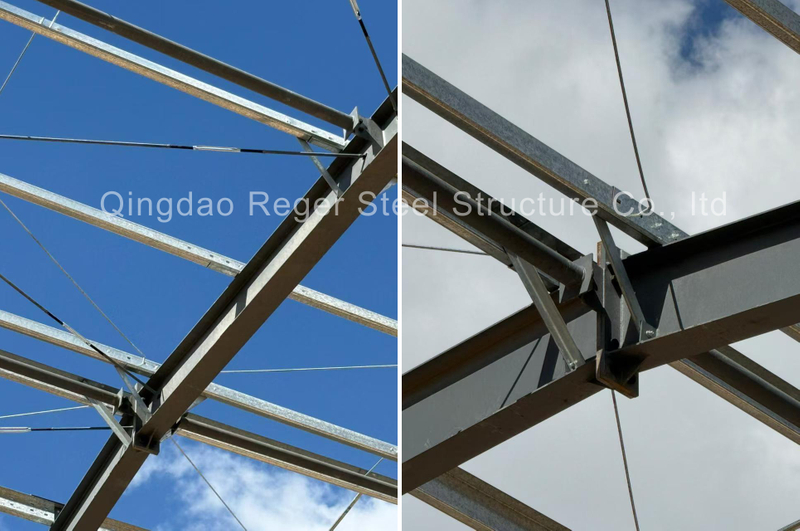

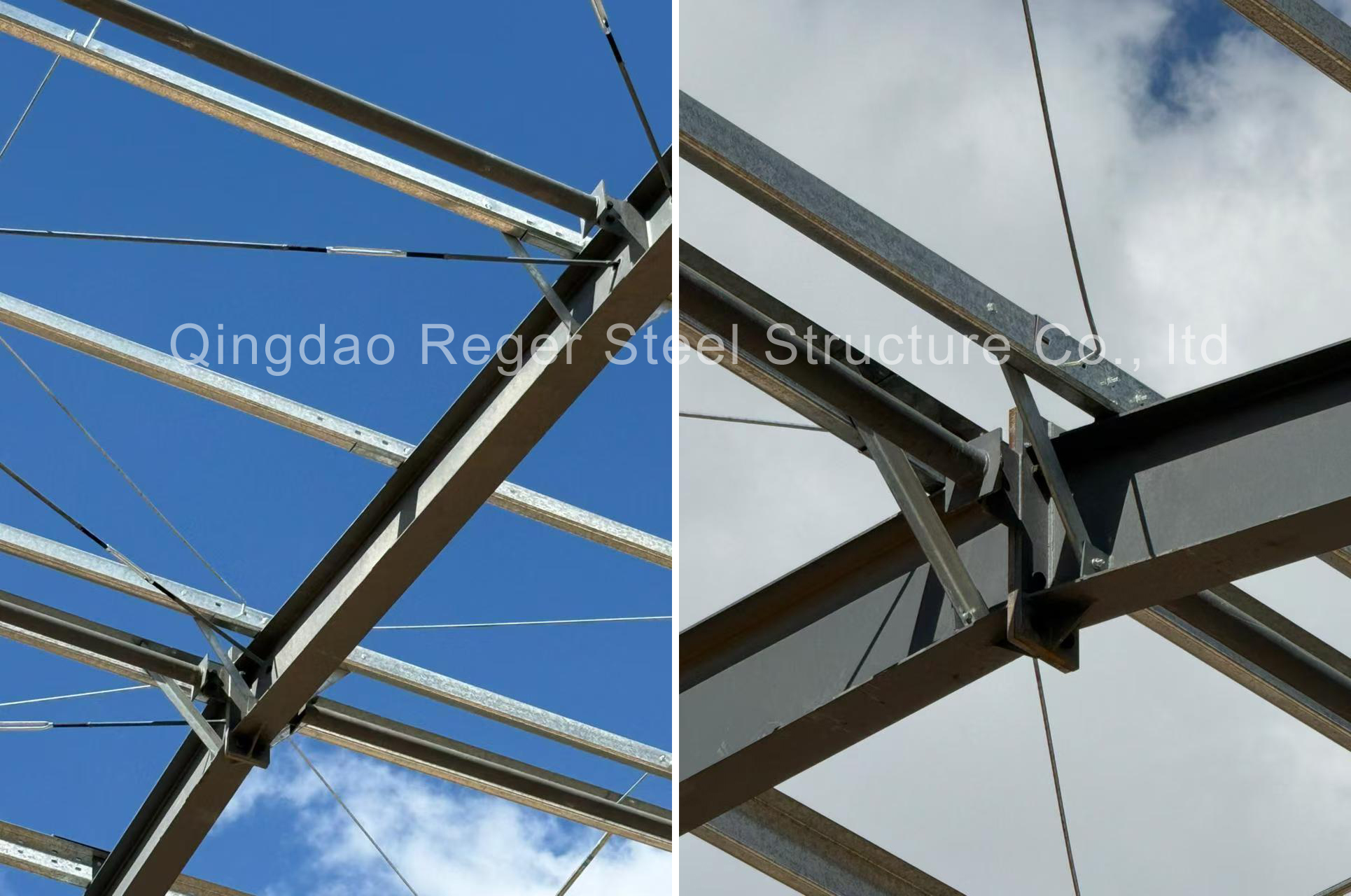

2. Secondary Framing (Support System)

• Roof Purlins: Galvanized Z-section steel.

• Wall Purlins: Galvanized C-section steel.

• Material Grade: Q235B steel, galvanized to ensure long-term durability against environmental wear.

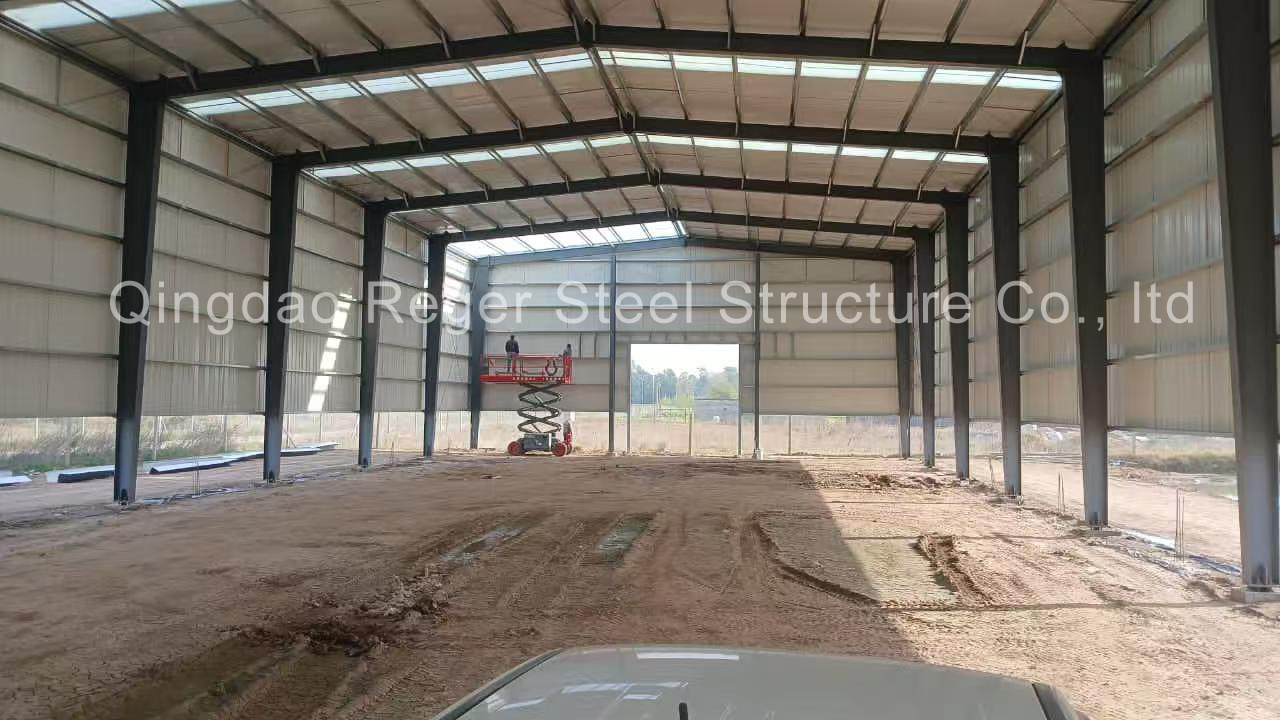

3. Cladding, Lighting & Access Systems

• Roofing System: 50mm Rockwool Sandwich Panels – provides excellent thermal insulation, energy efficiency, and superior fire-rated protection.

• Wall Cladding: 0.5mm Single Steel Sheets – a lightweight, high-durability, and cost-effective cladding solution.

• Roof Lighting System: Integrated Skylight Sheets – maximizes natural light penetration to reduce daytime operational electricity costs.

• Access & Ventilation: Sandwich Panel Sliding Doors for smooth logistics access and premium Aluminum Windows for optimized natural ventilation and durability.

Why This Design Works:

The combination of a 20m clear span and a 9m eave height creates a tremendous volumetric capacity. This makes the warehouse building ideal for high-rise racking storage, heavy machinery operation, and seamless forklift maneuvering—perfectly suited for Argentina's growing industrial and agricultural logistics demands.
