Argentina Pre Engineered Workshop

Views: 73     Author: Site Editor     Publish Time: 2018-06-06      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Project Name: Pre Engineered Light Steel Structure Workshop

Location: Canuelas, Buenos Aires, Argentina

Area: 5930 m2

Project Time: 2009

Pre engineered workshop details:

1. Main steel workshop size: 80m-long * 60m-wide * 9m-high (ridge height:10m)

    Affiliated workshop area : 1130 square meter.

2. Light steel structure workshop main framework: H section steel column and beam with 2 times mid-grey anti-rusting painting; Galvanized C Purlin for roof and wall

3. Pre engineered steel structure support part: Tie bar, Roof and Wall Support, Bracing, Knee Bracing, Sleeve Pipe and Angle Steel

4. Wall and roof material: V-960 light steel sandwich panel

5. Thermal Insulation: 50mm EPS foam, 12kg/m3

6. Pre engineered workshop lighting system: Skylight panel

7. Design load-wind load: 0.79kn/m2

8. Windows: aluminium-alloy window, rolling window

9. Door: electrical rolling door

10. Light steel structure workshop crane: 8 cranes (lifting capacity:2 ton)

Pre engineered Steel Structure

Beam and Roof Purline of Pre Engineered Workshop

Wall Panel Erection of Light Steel Structure Workshop

Argentina Project - Light Steel Structure Workshop Building Under Construction

Pre Engineered Steel Structure Construction

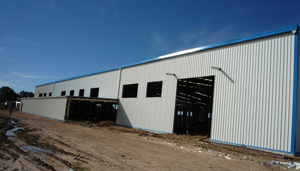

Pre Engineered Light Steel Structure Workshop in Argentina

Light Steel Structure Workshop in Argentina

Pre Engineered Workshop is Working Well
