Argentina Building Materials Store

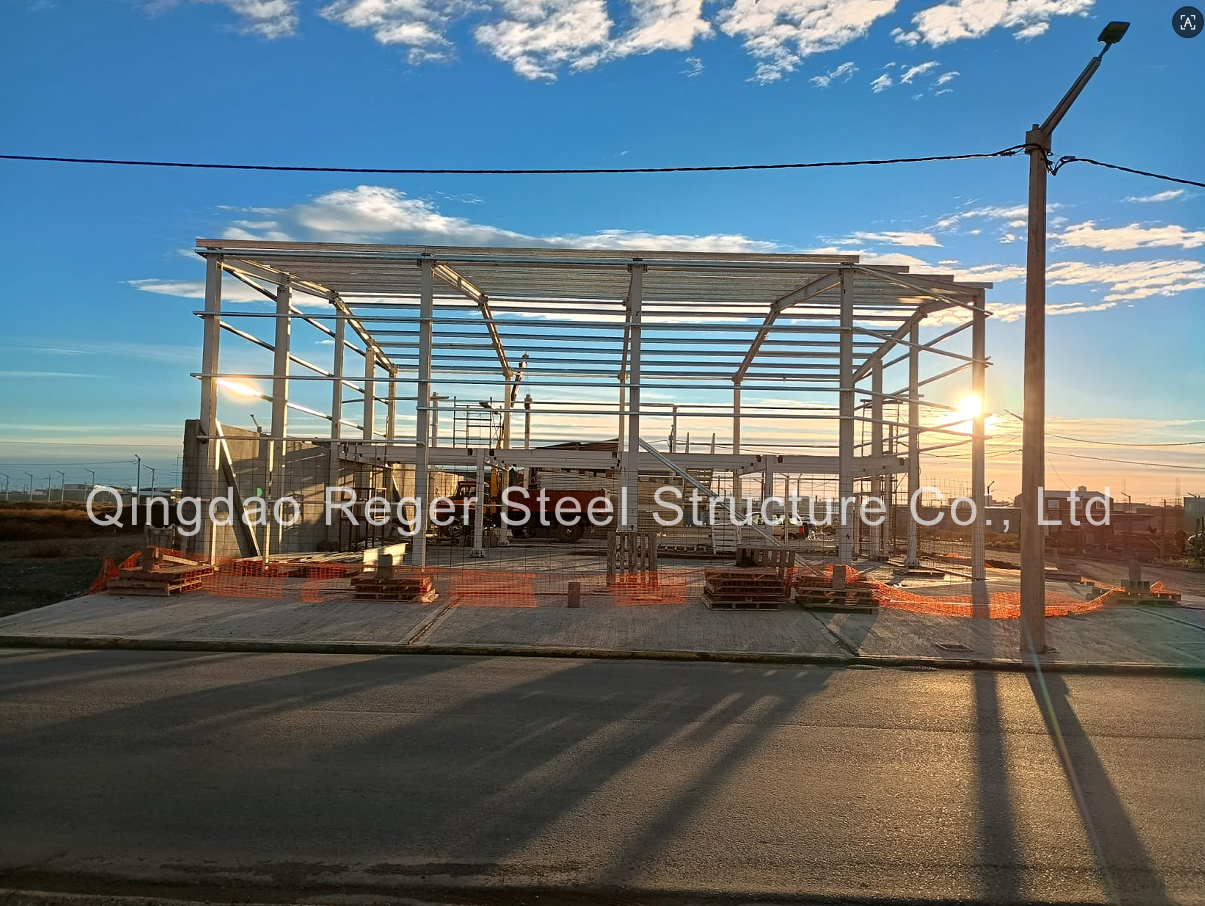

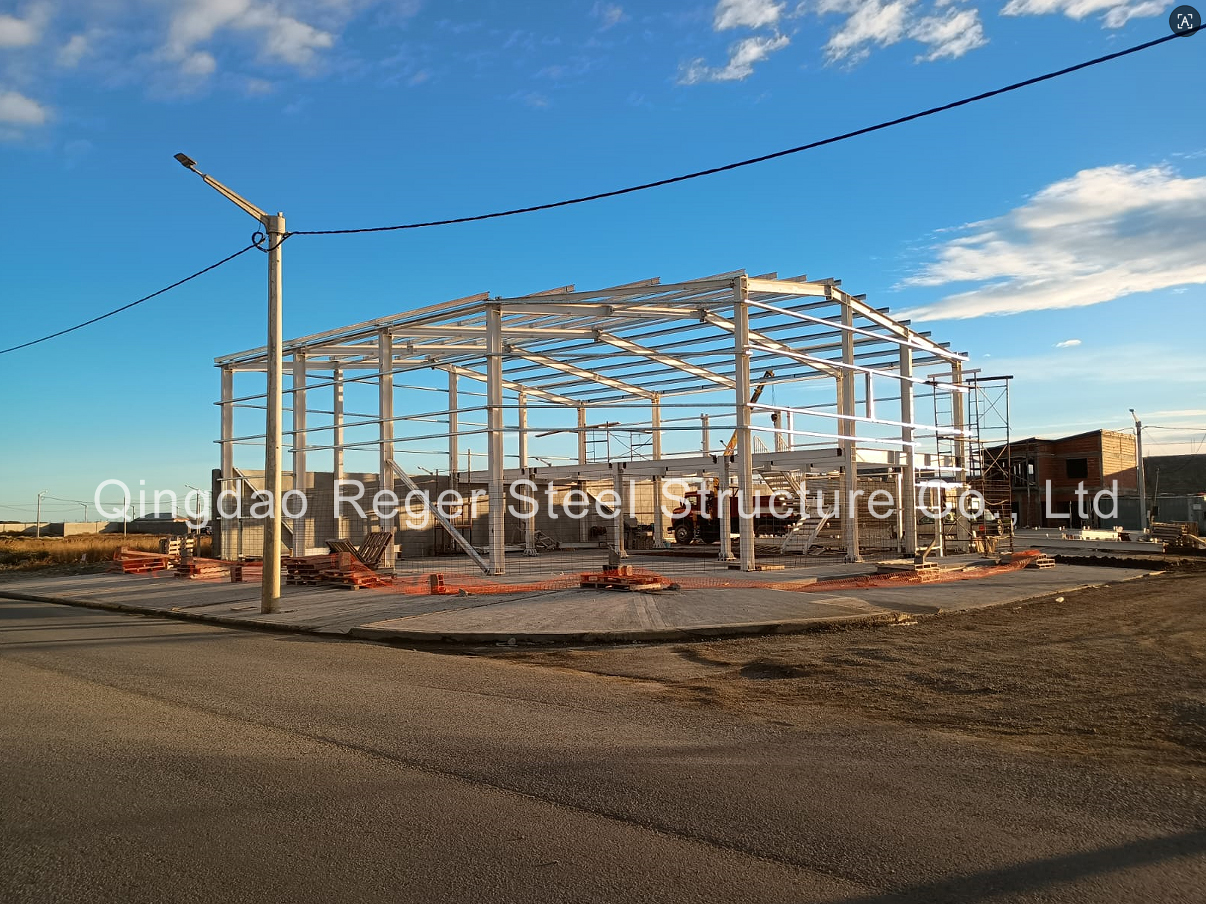

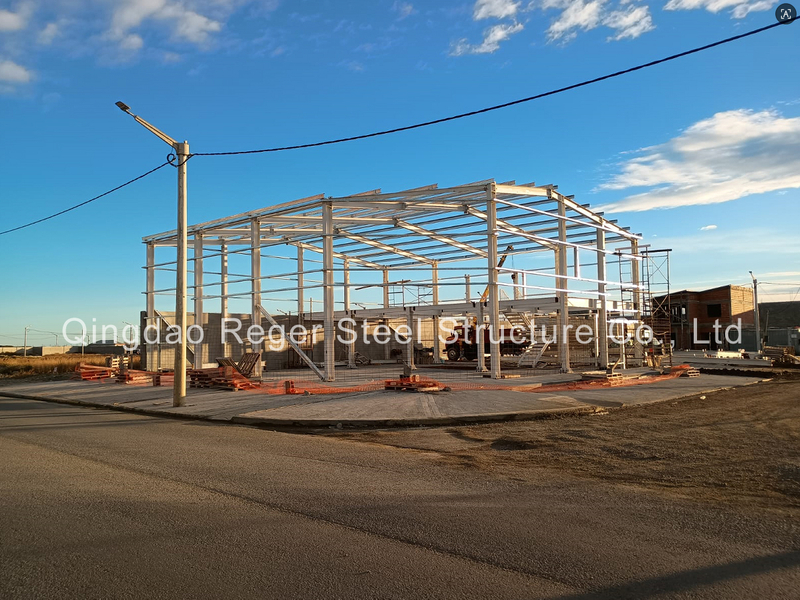

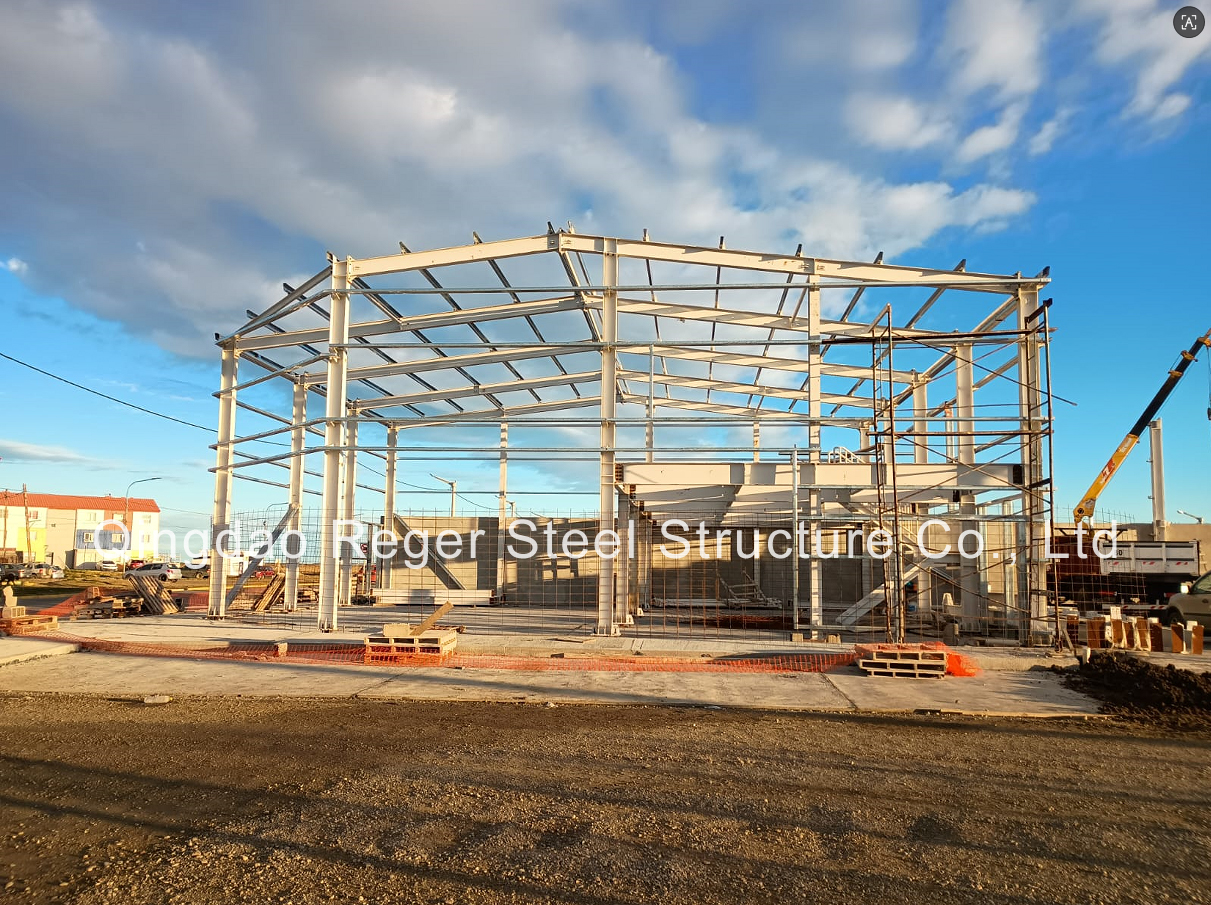

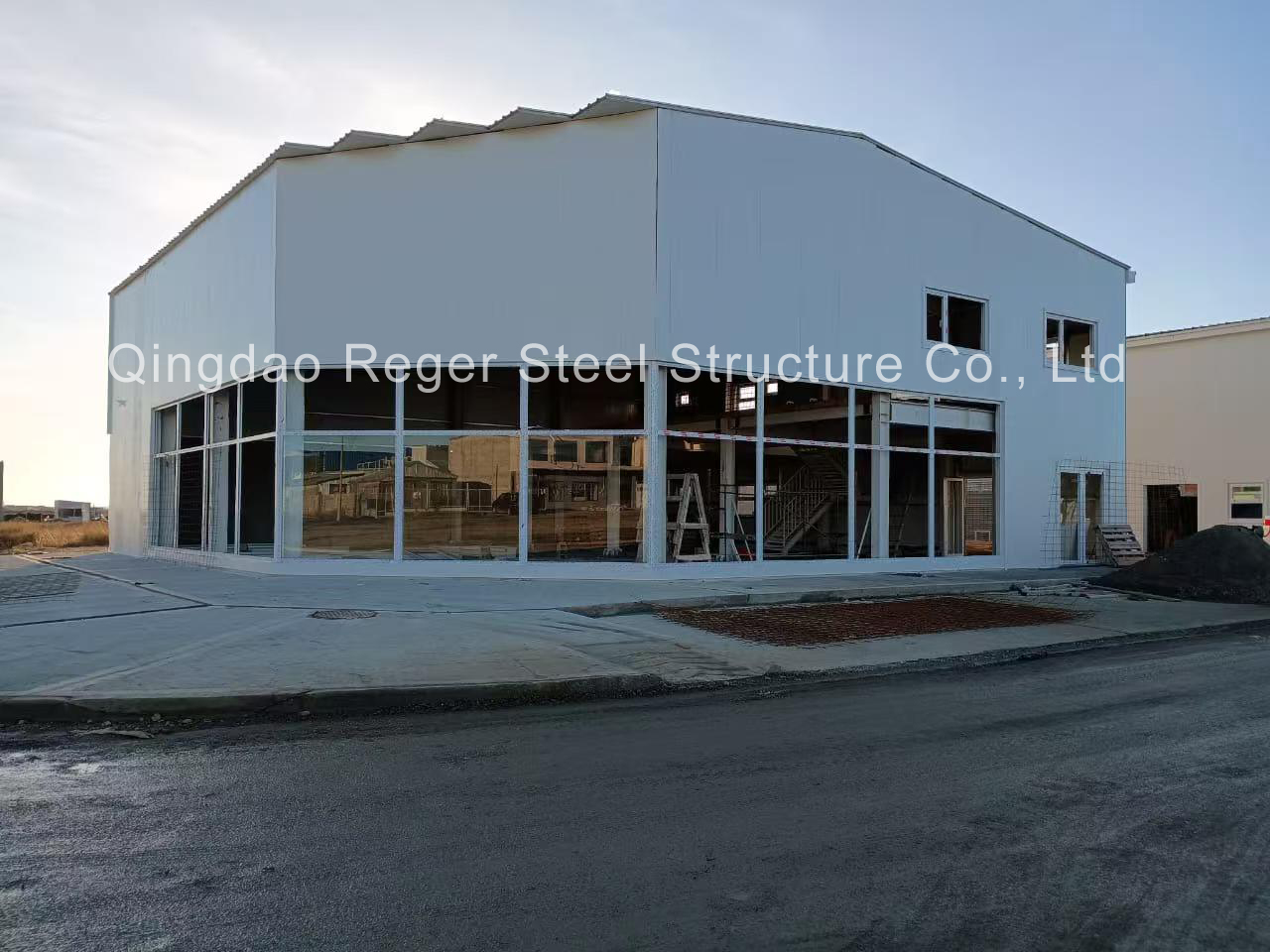

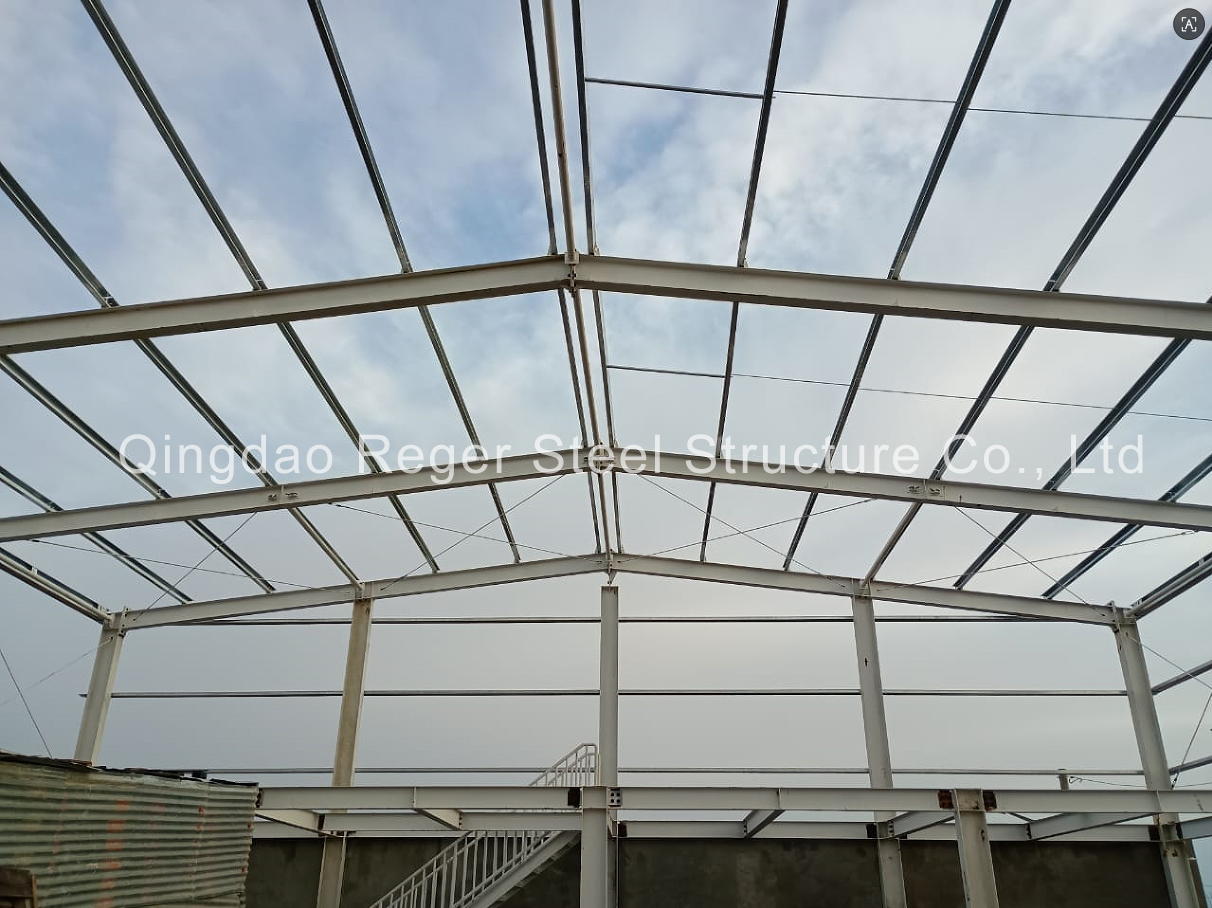

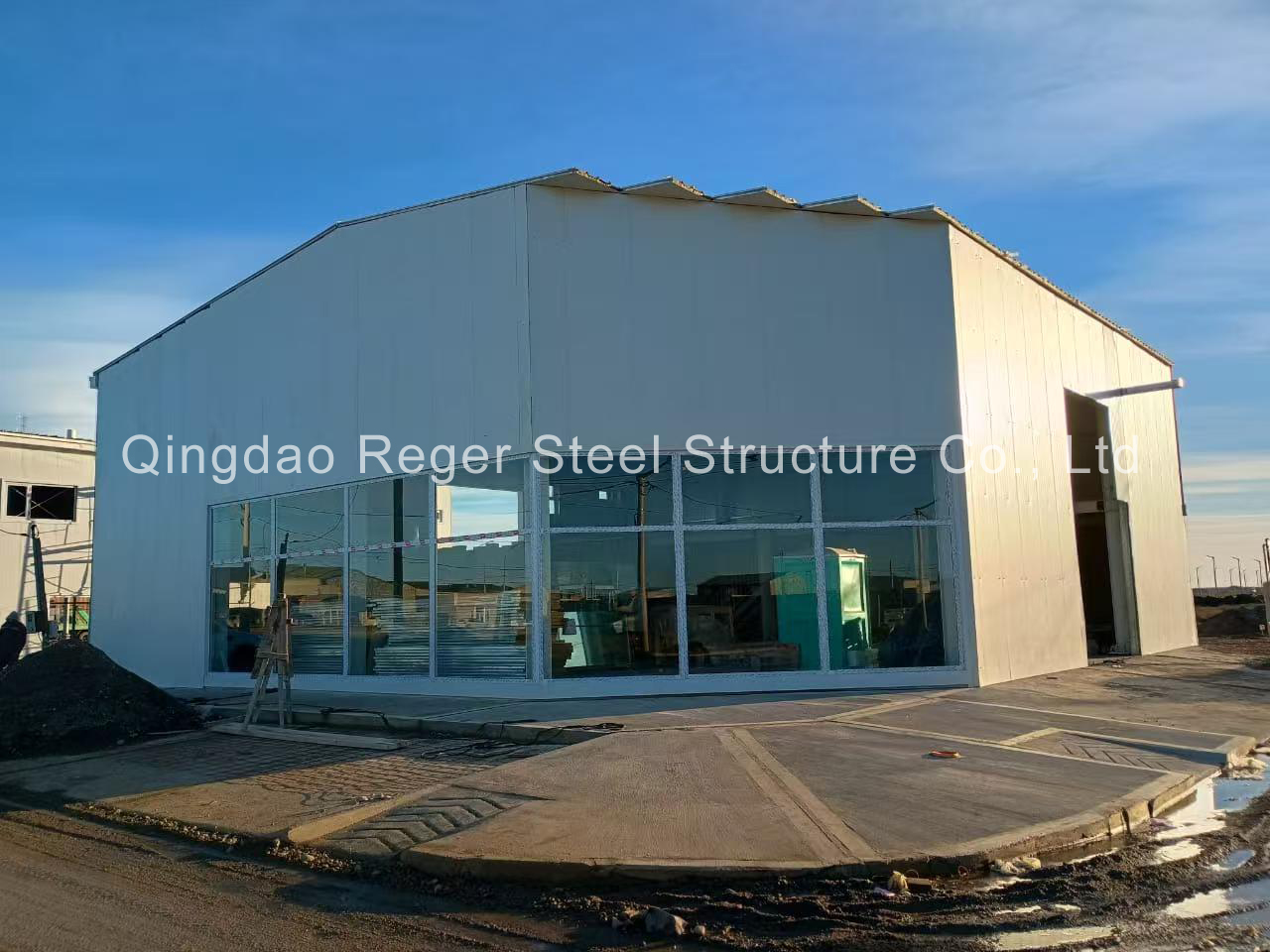

The project comprises two pentagonal steel-structure commercial buildings, identical in size and appearance, designed and manufactured for a building materials store in Argentina. Each steel building has a total area of ​​468 square meters.The building features an integrated mezzanine floor constructed with V688-1.0mm galvanized decking sheets and a custom steel staircase, enabling dual-function retail display and administrative office space. The building envelope utilizes 50mm thick Class A fire-rated Rockwool sandwich panels, offering exceptional thermal insulation, moisture resistance, and noise reduction capabilities, making it perfectly suited to the temperature fluctuations of South America.
Availability:
Inquire

Argentina Building Materials Store
Argentina Building Materials Store
Argentina Building Materials Store
Argentina Building Materials Store
Argentina Building Materials Store
Argentina Building Materials Store

Quick Product Summary

Product Name

Building Materials Store & Commercial Warehouse / Prefabricated Steel Building

Project Destination

Argentina

Building Dimensions

L 18m × W 18m × H 6.6m / 7.65m

Total Floor Area

468 m² (Includes mezzanine level with steel decking) * 2 Sets

Primary Structure

Q355B / Q235B Structural Steel (Two-coat white anti-corrosion paint)

Cladding Material

50mm High-Density Rockwool Sandwich Panel

etailed Engineering Specifications

Items

Specification

Main Steel Framing

Column

Q355B, welded H section steel with two coats of white anti-corrosion paint

Beam

Secondary Steel Framing

Mezzanine Staircase

Q235B,  two coats of white anti-corrosion paint

Floor Deck

V688-1.0mm（galvanización)

Roof Purlins

Q355B, Hot-Dipped Galvanized C Section Steel

Wall Purlins

Horizontal Bracing

Q235B, Round Steel with Two coats of white paint

Column Bracing

Knee Brace

Q235B,  Angle Steel with Hot-Dipped Galvanized

Sag Rod

Q235B, Round Steel with Hot-Dipped Galvanized

Cladding System

Roof Panel

V950, Rockwool Sandwich Panel

Wall Panel

Accessory

window

Aluminum Window and UPVC Window

Door

Aluminum Door and Fire Rated Door

  • Customized Design: Tailored perfectly to suit irregular street corner plot layout to optimize the use of the land and visibility from the streets.

  • Modern Appearance: Includes large glass windows at the corner, making a great natural light passage while creating an attractive retail space.

  • High Quality Build: Premium Q355B H-beam steel primary framing with corrosion-resistant coating, built to withstand local wind loads and seismic requirements.

  • Steel Mezzanine Floor: Includes steel mezzanine floor that is designed to double the available floor space. Suitable for offices and premium product showcase or storage area.

  • Thermal Insulation and Cladding: White Rockwall sandwich panel wall panels used for proper temperature control and fire resistance performance.

  • Pre-engineering and Easy Assembly: Precisely pre-drilled bolt connections to ensure quick and cost-effective assembly.
