Pakistan Steel Structure Plant

Views: 104     Author: Site Editor     Publish Time: 2019-01-14      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Project Name: Industrial Steel Structure Plant Building for Ceramic Tile Processing

Location: Lahore, Pakistan

Area: 49500 m2

Project Time: 2014

Steel structure plant details:

1. Size: 243*201*9m(Length*Width*Eave Height)

2. Industrial plant building primary framing: welded H column and beam with Q345B materials

3. Secondary framing: Q235B C section steel purlin, tie bar, roof and wall support, bracing are formed as secondary framing

4. Steel structure plant building roof and wall panel: 0.5mm outer steel sheet +50mm glass wool blanket with foil paper+0.4mm inner steel sheet

5. Concrete Block: 3m height

6. Door: Industrial Sliding Door and E-roller Door

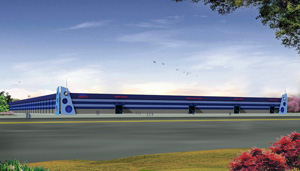

Pakistan industrial steel structure plant building project

steel structure plant building design

Steel Structure Loading - Ceramic Tile Factory

steel structure plant building construction

steel structure frame

steel frame of plant building

structural steel frame of industrial plant building

installation team
