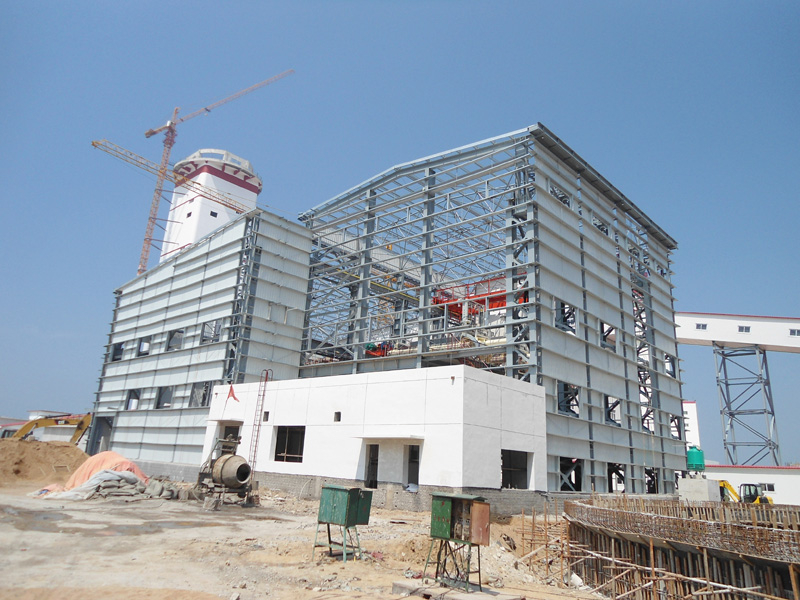

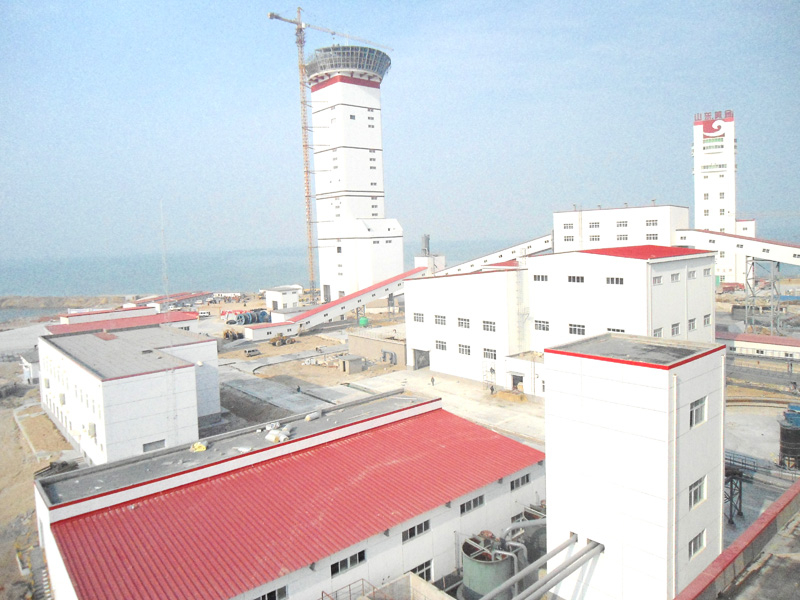

Prefabricated workshop Buildings are the main industrial workshop of Sanshan Island gold 8000T/D Project, used for gold mining exploration construction. Structural system is 36.7 m steel frame with anti-corrosion requirement due to close to the sea.
Features
1. Location: Qingdao, China.
2. Customized designing
3. Prefabricated workshop structure system: frame structure
4. Good anti-corrosion due to close to the sea
5. Most of the industrial workshop construction and equipment installation as well as civil construction interspersed operations
Prefabricated workshop buildings description
Total steel amount: 2600 t

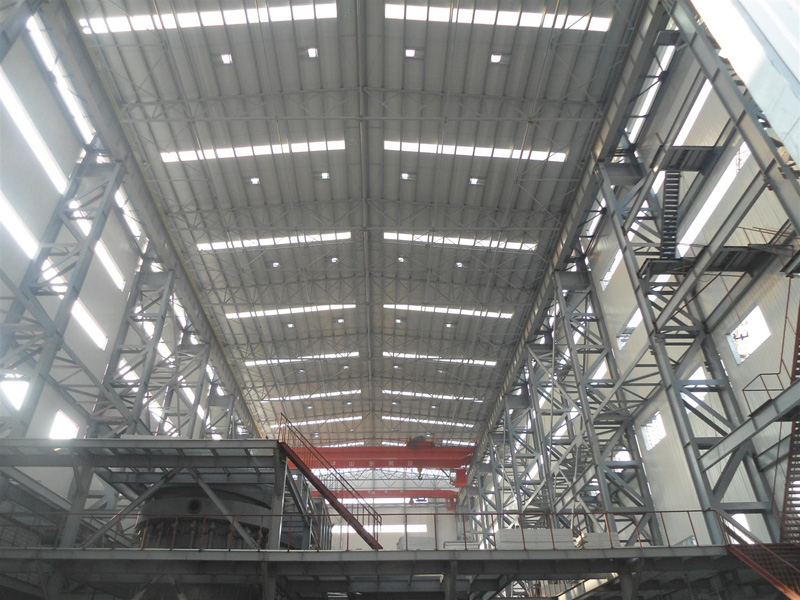

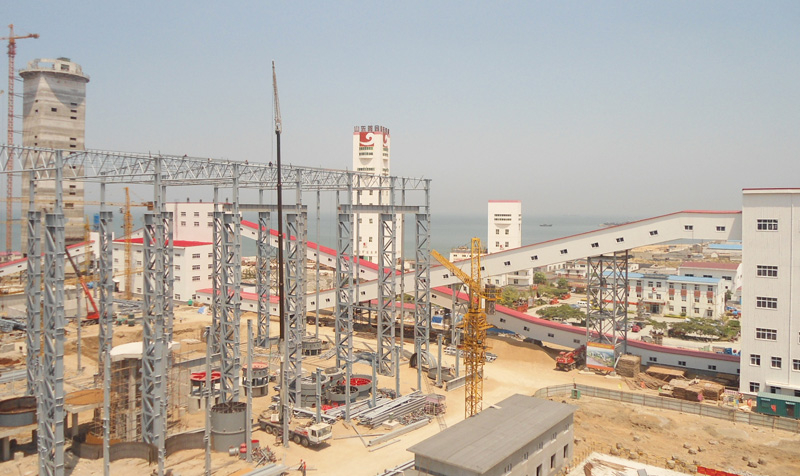

Column: lattice column + welded H Beam, columns up to 39 meters, a single steel column weighing about 28 tons, a total of 22

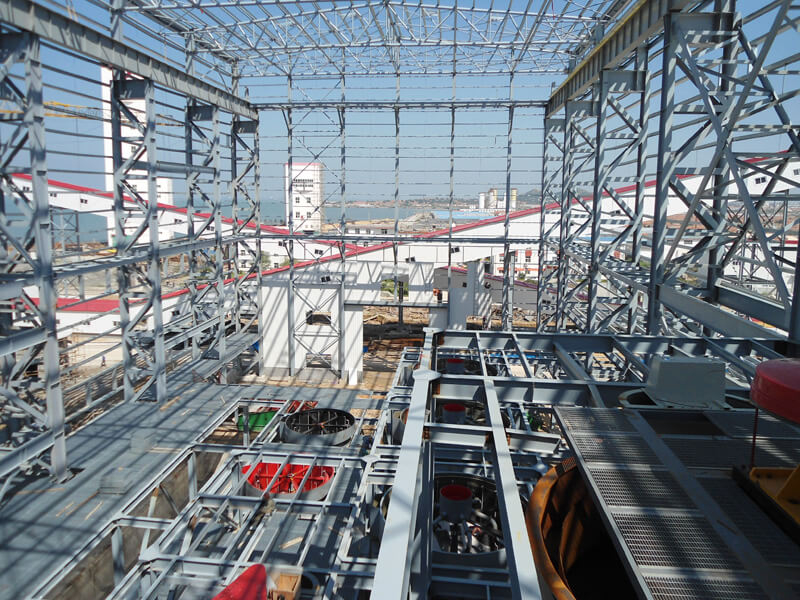

Beam: pipe truss steel beam, span 33 meters, 12 meters bay
Service: prefabricated workshop building design, fabrication and erection
Construction: industrial workshop is finished installation within 80 days
