Bolivia Steel Workshop Building

Views: 166     Author: Site Editor     Publish Time: 2018-12-27      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Project Name: Prefabricated Steel Structure Workshop Building

Location: Bolivia

Area: 5922 m2

Project Time: 2016

Steel workshop building details:

1. Size: 94*63*8.5m(Length*Width*Eave Height)

2. Primary steel framing: Welded H column and beam with hot dip galvanized, Q345B

3. Steel Workshop building secondary Framing: hot dip galvanized C purlin, tie bar, roof and wall support are formed as secondary frame

4. Wall cladding: V-840, 0.5mm thickness single steel sheet, white gray

5. Steel structure workshop building roof cladding: V-960, 0.5mm/100mmEPS/0.4mm EPS Sandwich panel, sea blue

6. Prefabricated workshop building lighting system: skylight panel

7. Roof vent: 18 set unpowered turbine ventilation

8. Door: sandwich panel sliding door

unloading steel structure of Prefabricated Workshop Building

Steel Structure components of steel workshop building

steel structure frame installation

Steel Workshop Building Erection

hot dip galvanized steel frame of steel workshop building

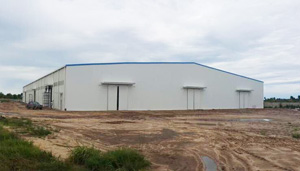

Bolivia Project - Prefabricated Steel Structure Workshop Building
