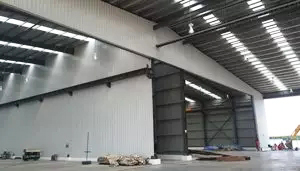

Project Name: Industrial Steel Structure Painting Workshop
Location: Thailand
Area: 8800 m2
Project Time: 2015
Industrial workshop details:
The industrial painting workshop adopts portal frame structure
1. Steel structure painting workshop design technical parameters:
Wind load: 25m/s; earthquake grade: 6 degrees
Structural type: portal frame
Industrial painting workshop size: 160*55*9m(Length*Width*Eave Height)
2. Main steel structure part: Welded H steel columns and beams painted, other sub-members are 100% galvanized with Q345B material
3. Roof and wall purlin: hot-dip galvanized C section steel with Q235B material
4. Steel structure painting workshop cladding system:
Roof insulation material: 0.5mm V-960 type ocean blue cladding sheet with Zn layer 60g/m2
Wall insulation material: 0.5mm V-840 type white grey cladding sheet with Zn layer 60g/m2
5. Door: sliding door, 20m*7m*4sets
6. Industrial workshop crane: 4*5T over-head crane
