Light Steel Structure Workshop

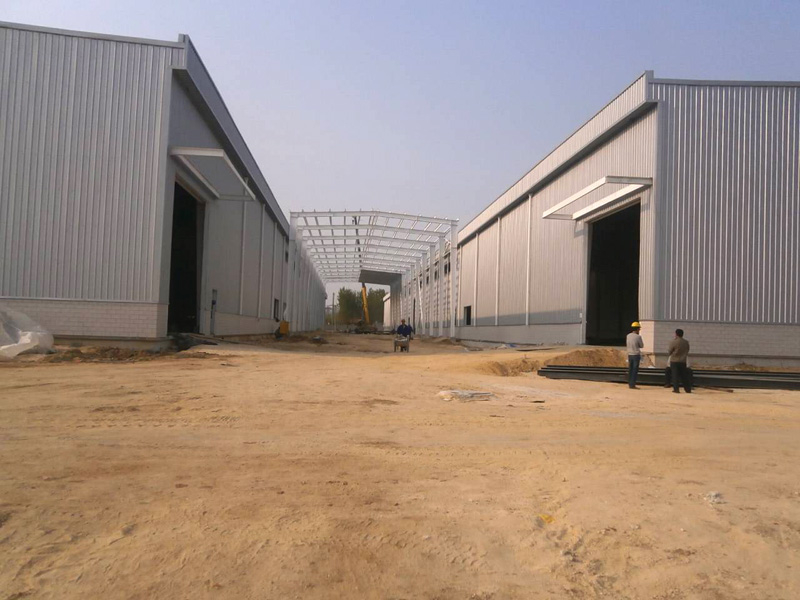

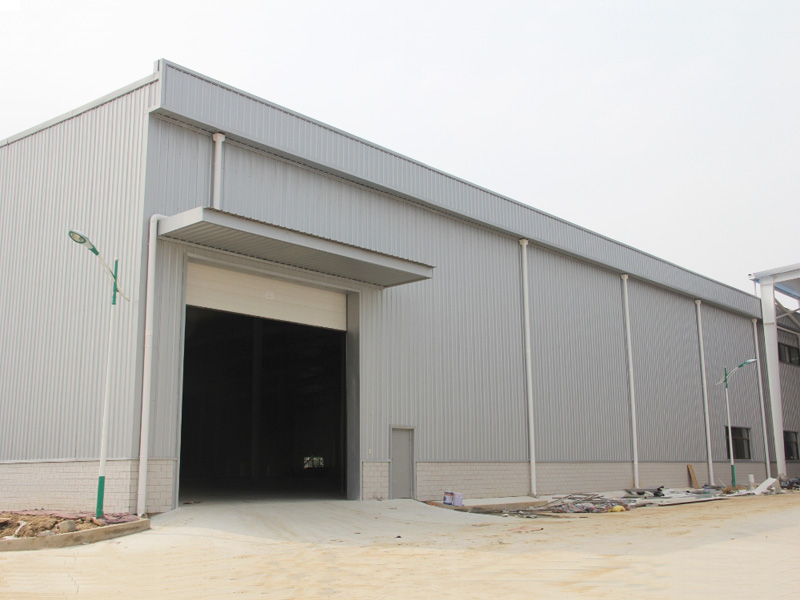

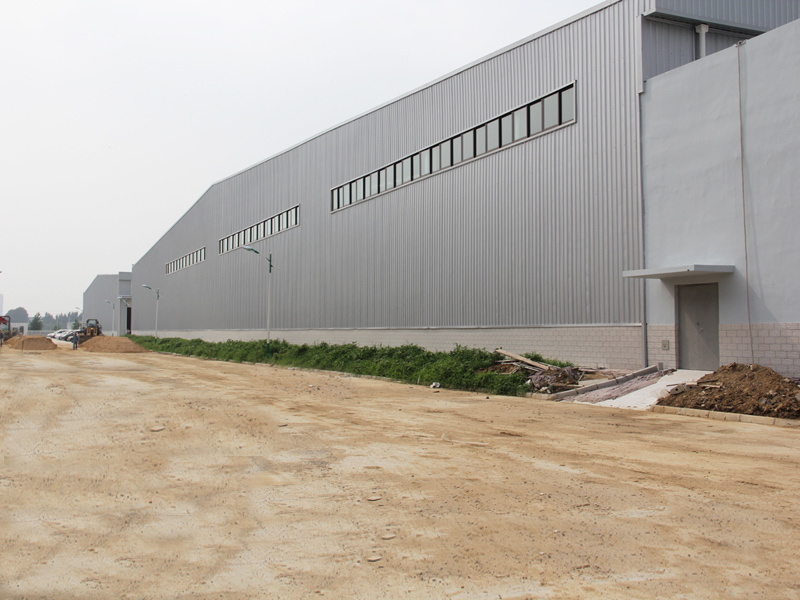

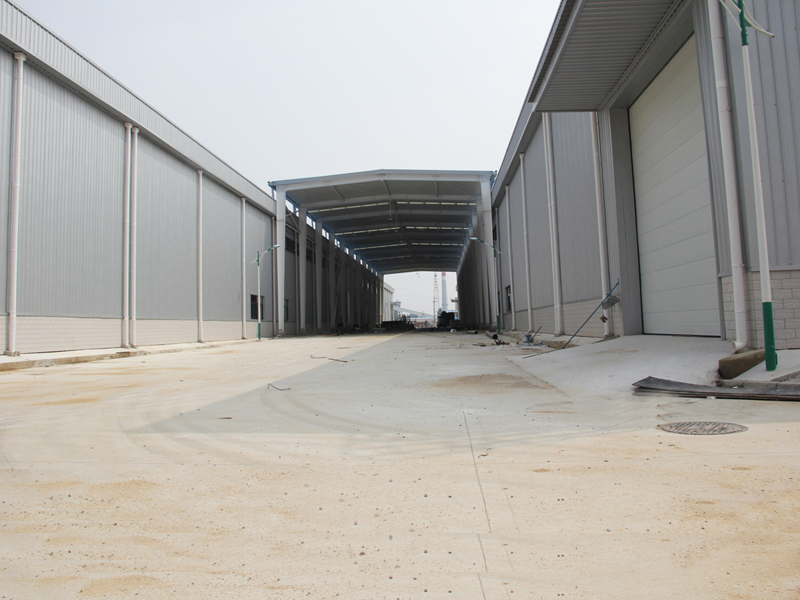

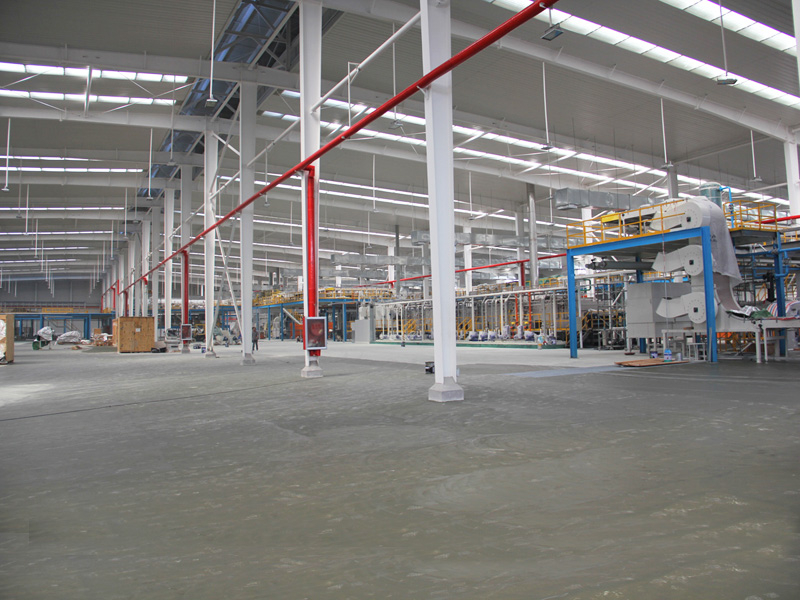

Light steel workshop with construction area of 20790.31 square meters, the structural system adopts light steel structure + frame structure, steel workshop construction place in Qingdao, China.

Steel structure workshop features

1. Long life span: 50 years

2. Safety classes of structure-level 2

3. Seismic fortification intensity: 7 Degree

4. Fire-resistance rating: Level 2

5. Workshop steel structure is light

Light steel workshop details:

1. Main steel framing: H section steel column, beam and mezzanine beam, which are treated oxide primer and grey facing painting

2. Secondary steel framing: galvanized C section steel purlin, tie bar, roof and wall support, bracing are formed as secondary framing

3. Roof cladding:0.6mm steel sheet+100mm glass wool insulation+0.5mm steel sheet

4. Wall cladding: 0.7mm steel sheet+100mm glass wool insulation+0.5mm steel sheet

5. Steel workshop mezzanine system: steel frame + decking floor sheet

6. Brick wall: 1.2m Height

7. Window: aluminium-alloy window

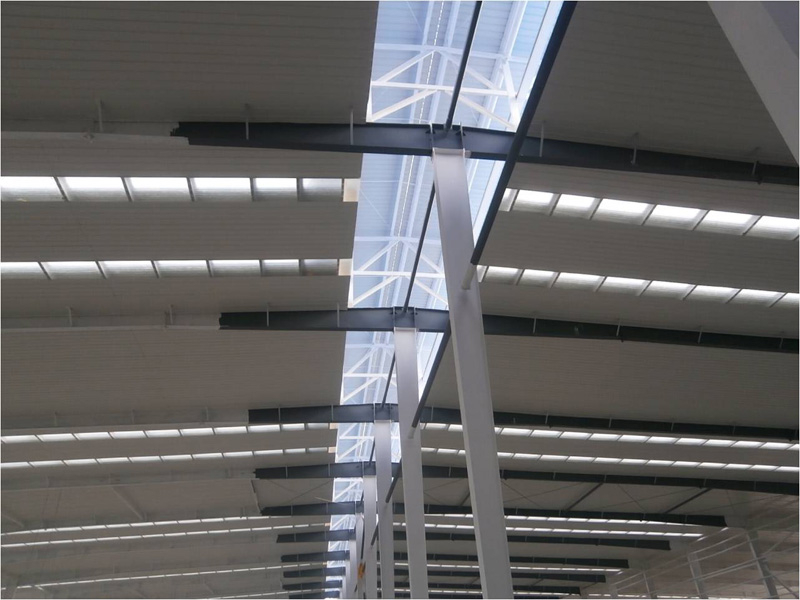

8. Lighting system: roof monitor + skylight sheet
