Prefab Steel Structure Workshop

Prefab steel workshop features:

1. Structural type: portal steel frame structure

2. Steel workshop design wind load: 0.3KN Per M2

3. Roof live load: 0.3KN Per M2

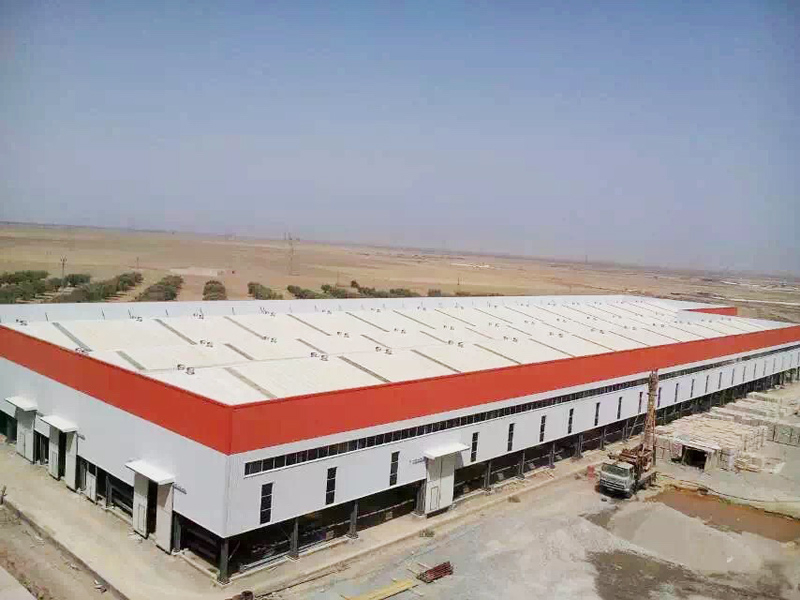

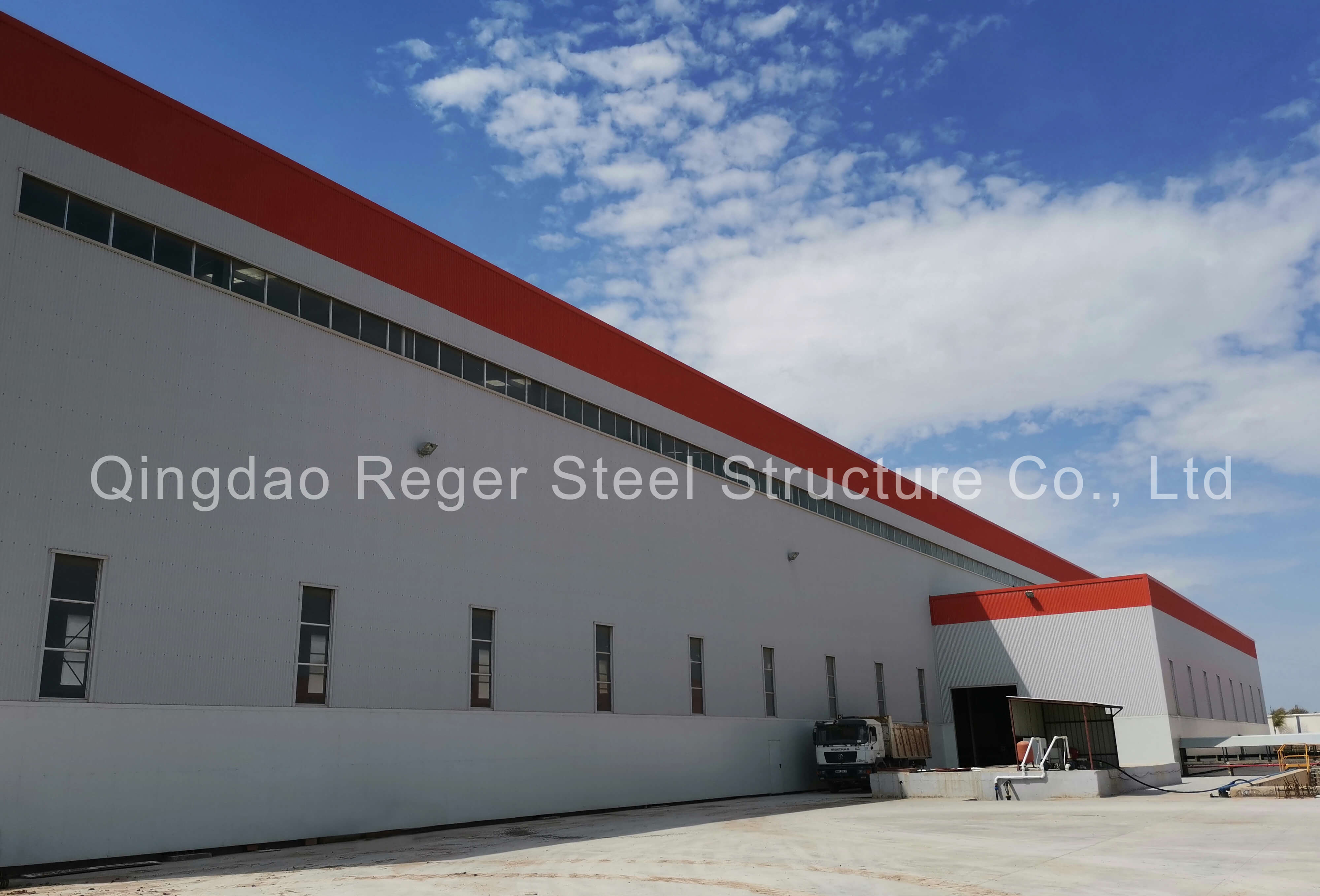

4. Brick manufacturing hangar construction site: Algeria

Brick factory steel structure details:

1. No.1 workshop size: 102m * 46m * 12.45m * 6（bay）(2/10 slope)

2. No.2 workshop size: 186* 62 * 8.5 * 6（bay）(2/10 slope)

3. Prefab workshop main steel framing: Hot rolled H section steel with two coats of mid-grey paint painting

4. Secondary steel framing: Galvanized C Purlin, Tie Bar, Roof and Wall Support are formed as secondary framing

5. Roof materials: V-820 steel sheet, white grey + 100m fiberglass blanket with Aluminium-foil + wire mesh

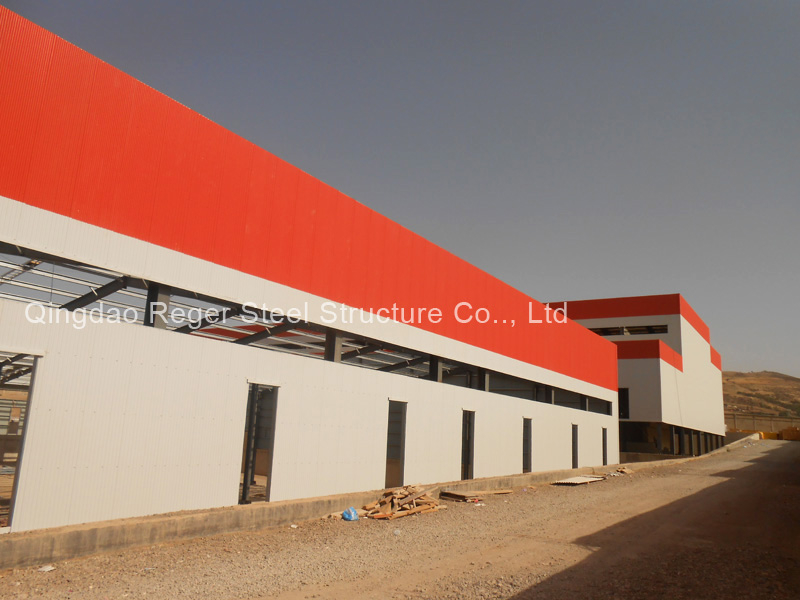

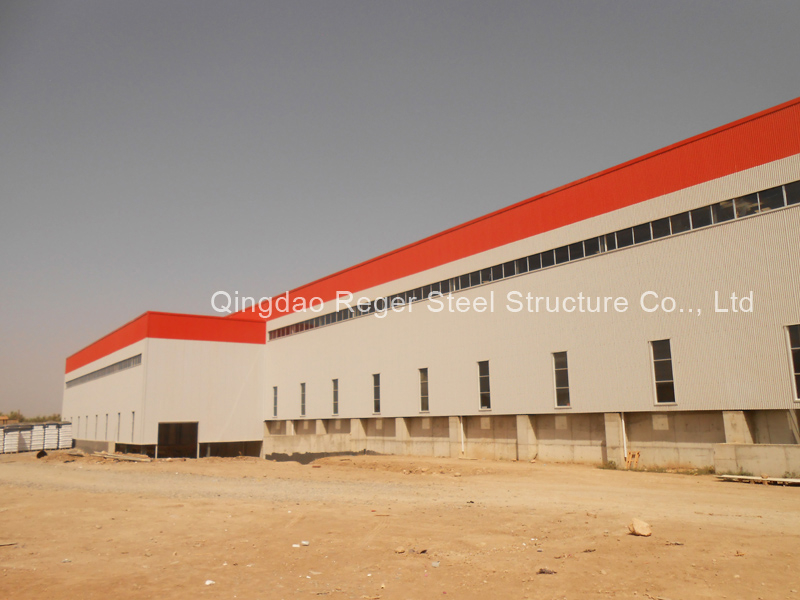

6. Algeria Brick factory steel structure wall materials:

Wall Cladding: V-836 Steel Sheet,0.6mm, Sliver

Exterior Parapet(wall): RAL2001-V836 Steel Sheet, GUANZHOU

Interior Parapet(wall): V-836 Steel Sheet, Sliver

7. Prefab steel workshop lighting System: Skylight Panel

8. Roof Vent: 20Pcs turbine ventilator-stainless steel

9. Window: plastic steel window

10. Door: sliding door, V-950 sandwich panel
