Steel Structure Exhibition Hall

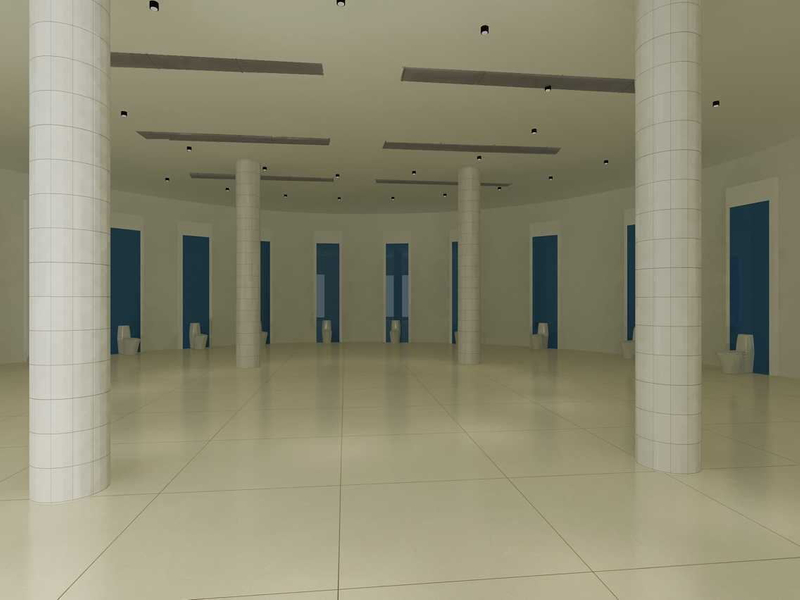

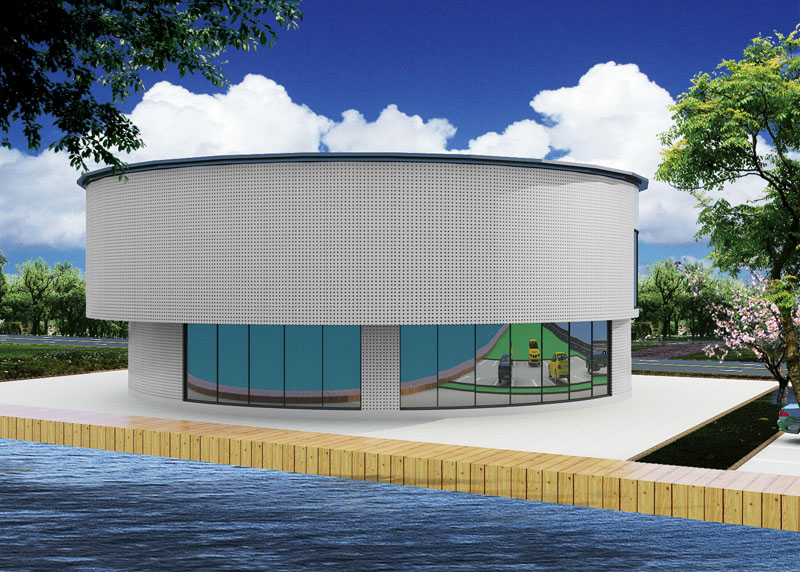

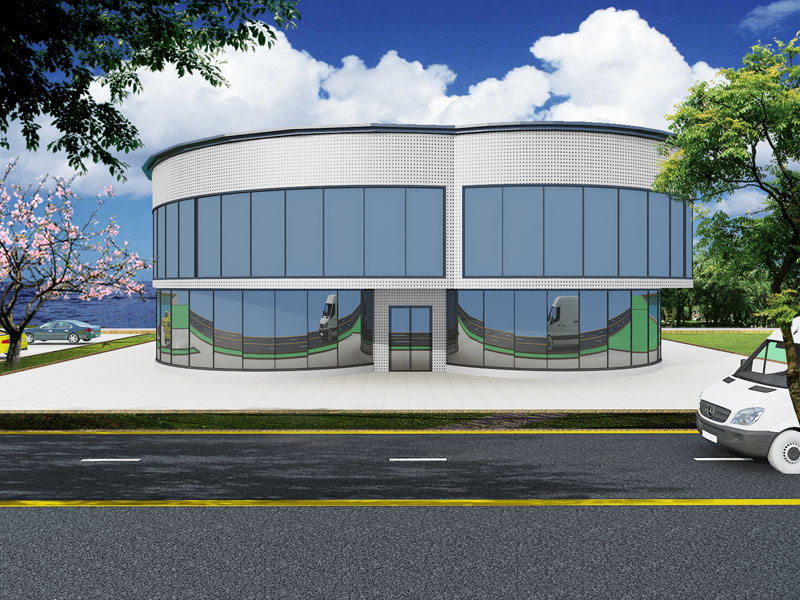

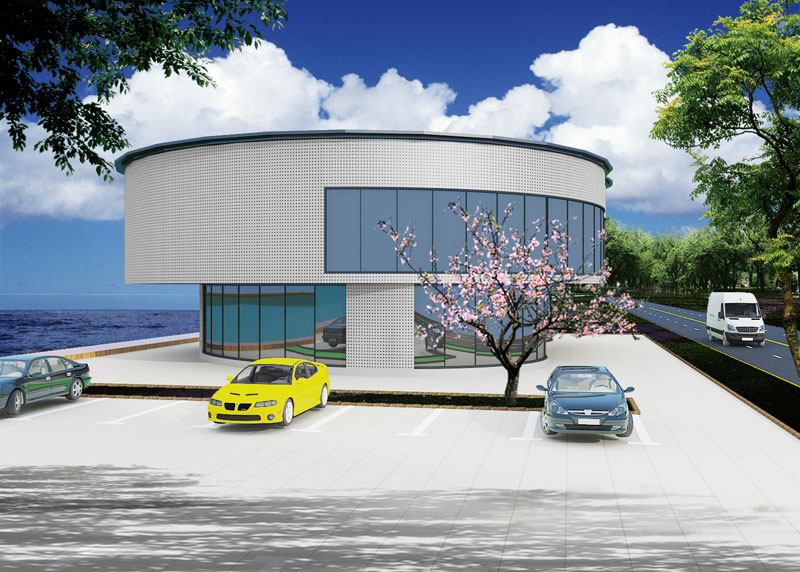

Steel structure exhibition hall is a two-story steel commercial building, covers area of 631.2 square meter, used as bathroom product showroom, built in Nigeria.

Steel structure exhibition hall features:

Unique shape: all adopt circular shape, large-area glass curtain wall

Beautiful appearance: simple and stylish

Steel structure exhibition hall details:

1. Size: 19*16*8m(Length*Width*Height)

2. Main Steel Frame:

a. Column: round steel pipe with two times pale-grey paint, Q345

b. Beam: H section steel with two times pale-grey paint, Q345

c. Stair: revolve stair

3. Exhibition hall roof cladding materials: 2mm Steel guard plate

4. Ceiling: plasterboard

5. Floor material: H type steel beam + 1mm V688 decking floor + concrete

6. Exhibition hall wall materials: 90mm, EPS&Cement sandwich panel + aluminum composite panel + Glass curtain wall

7. Window: thermal insulation window

8. Door: Glass swing entrance door

9. Steel structure exhibition hall decoration: Central air conditioning + Water system + Electricity system
