Steel Structure Prefab Cafe Shop Building

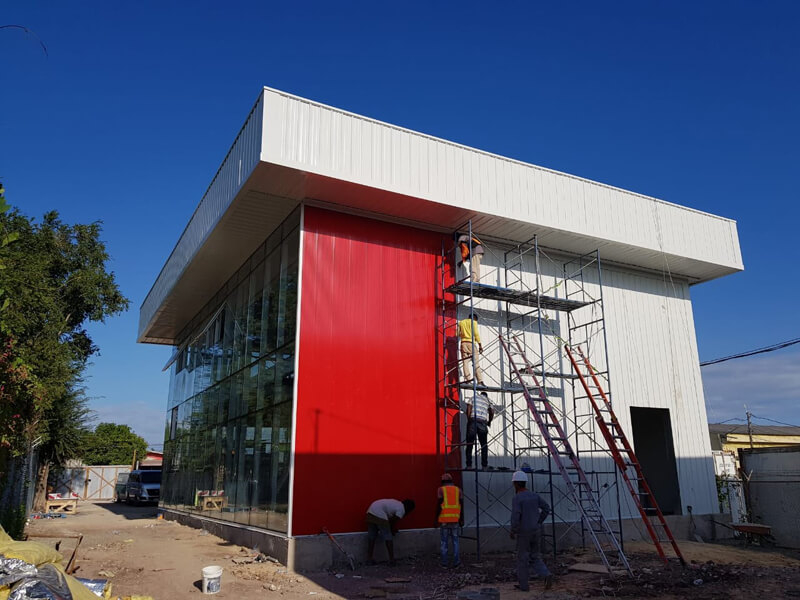

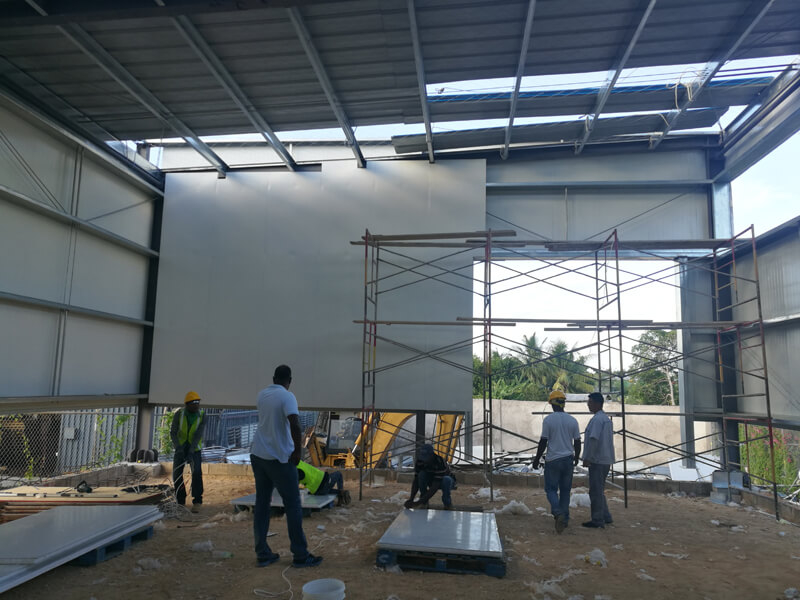

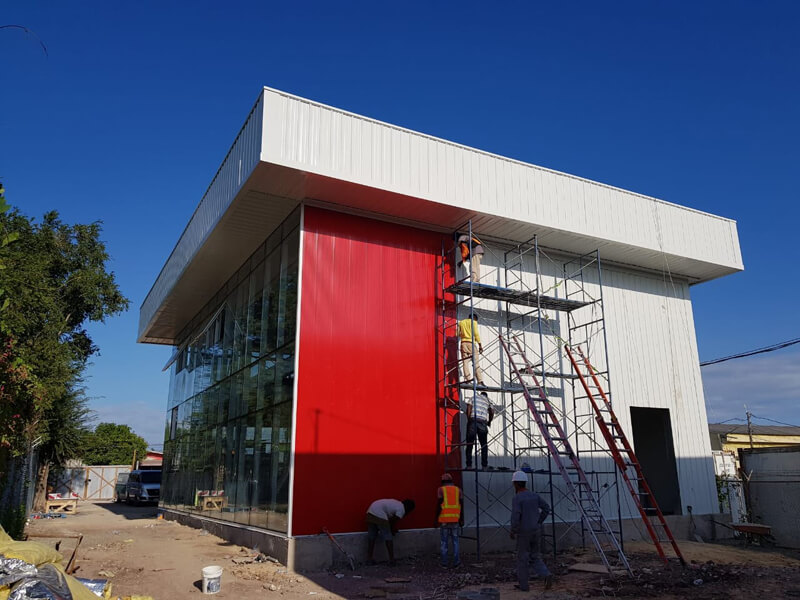

prefab cafe building, located in Jamaica, cafe shop building area 180 sqm, we supply designing, fabrication, and erection of cafe building.
Availability:
Steel Structure Prefab Cafe Shop Building
Steel Structure Prefab Cafe Shop Building
Steel Structure Prefab Cafe Shop Building
Steel Structure Prefab Cafe Shop Building
Steel Structure Prefab Cafe Shop Building
Steel Structure Prefab Cafe Shop Building

Prefab cafe building features:

1. Morden design

2. Eco-friendly buildings

3. Inexpensive but unique

4. Safe and stable


Cafe shop building details:

Size: 15*12*6(Length*Width*Height)(5/100 slope)

Cafe building design load: Wind load - 200Km per Hour, no earthquake

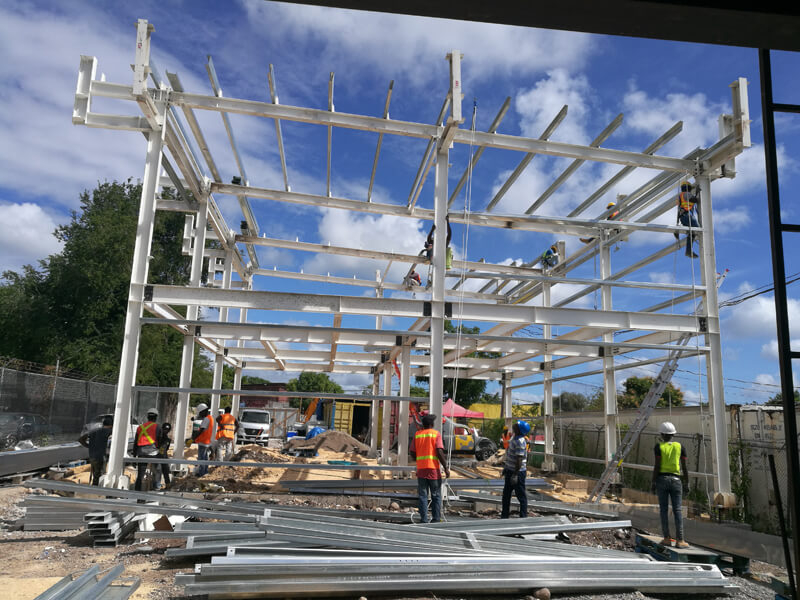

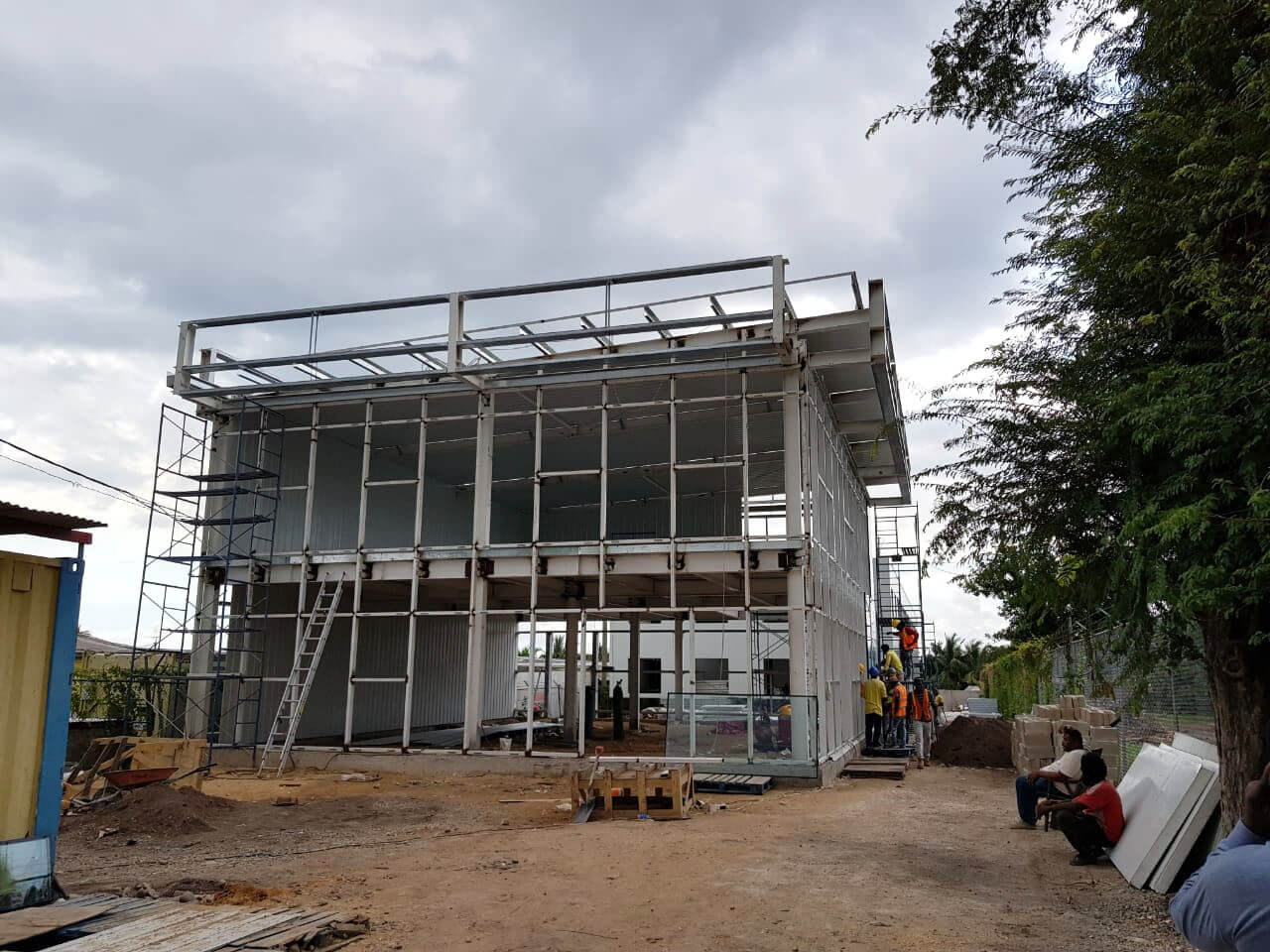

Main steel framing: H column and beam, Q345B*grey paint two times

Purline: galvanized C profile steel

Roof protecting system:

Roof panel: V-840, EPS sandwich panel

Roof ceiling panel: PVC panel

Wall panel: V-900 0.60mm thickness steel sheet + fiberglass wool blanket + V-900 0.50mm thickness steel sheet

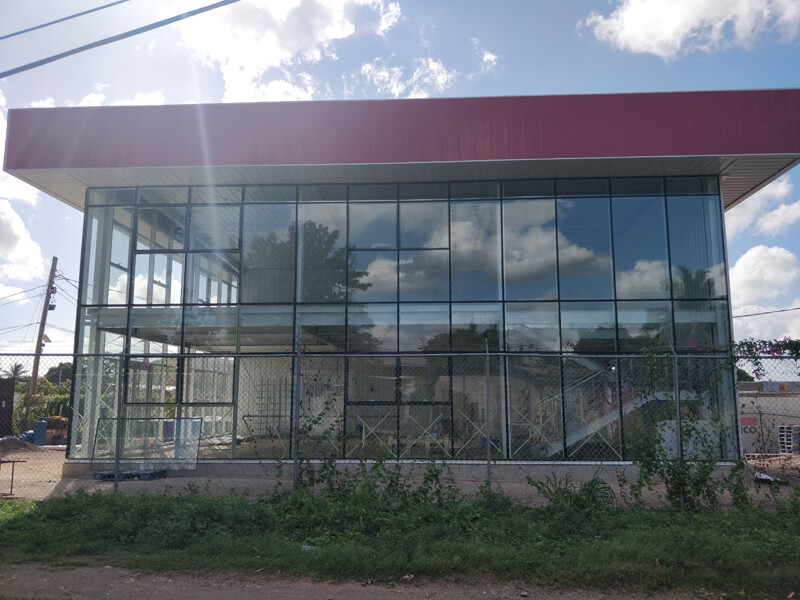

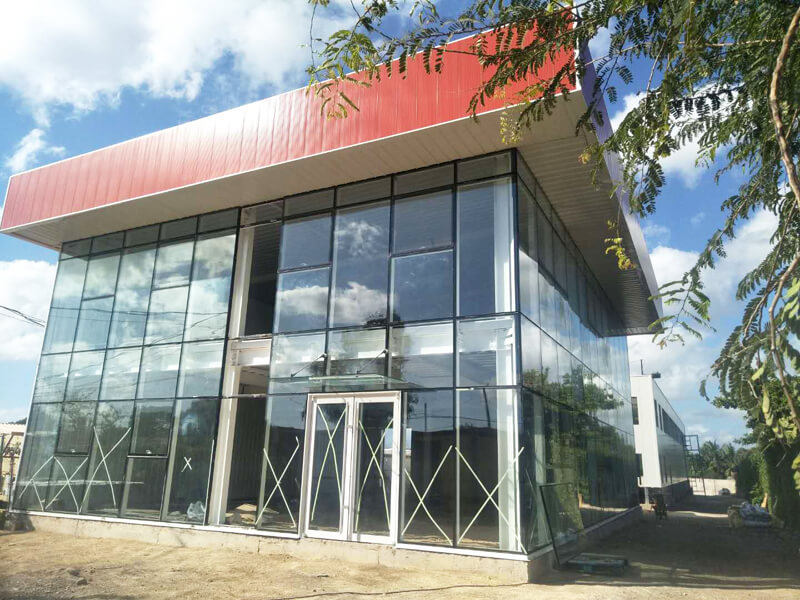

Front wall: Glass curtain wall
