Steel Structure Retail Warehouse

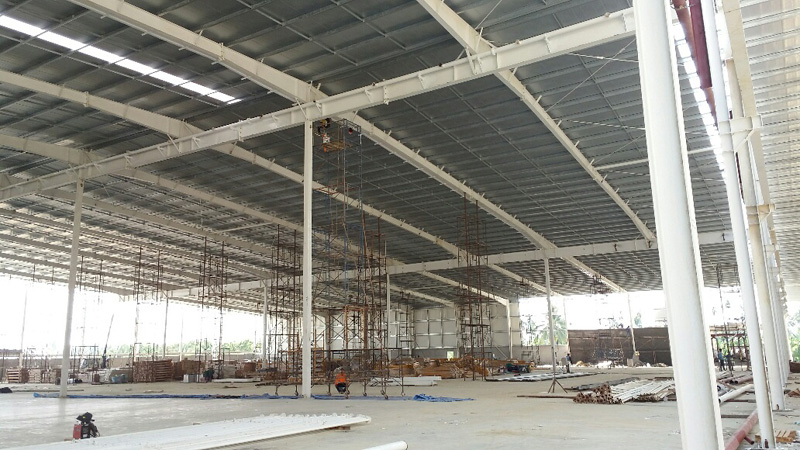

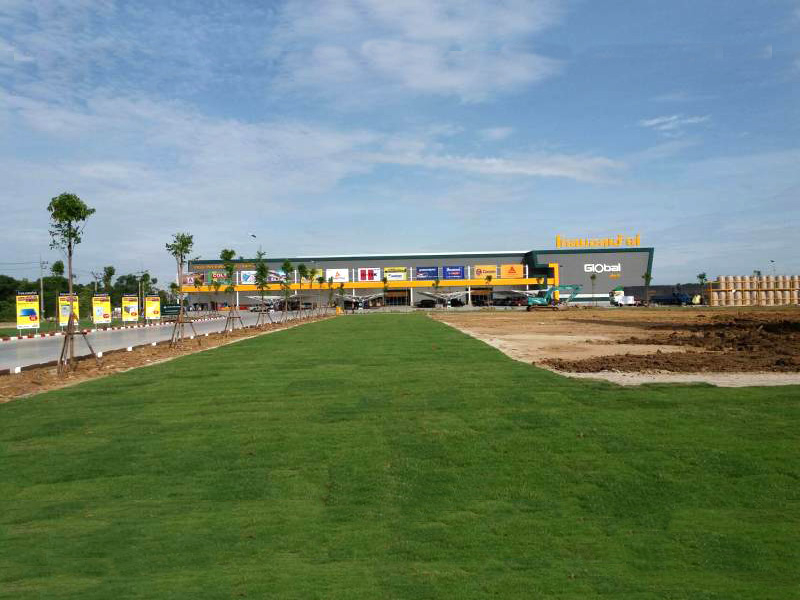

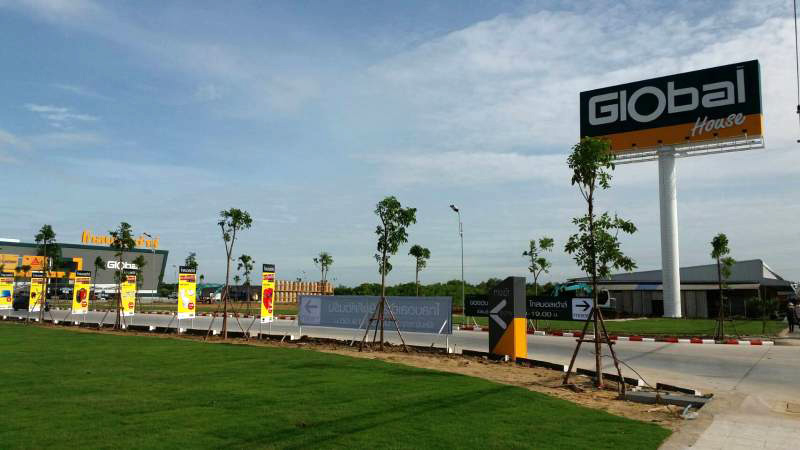

Steel structure warehouse is a retail warehouse with a 3-story office inside, consider partial de-column design. Steel warehouse is built in Bangkok, Thailand, and construction area 15372 sqm.

Steel retail warehouse features:

1. Structural system: light steel portal frame

2. Light deadweight, large span, great strength

Steel warehouse details:

1. Design load: wind load: 0.7KN/M2, no snow, no earthquake

2. Size: 168*109.5*22.2(Length*Width*Eave Height)

3. Main steel framing: H column and beam, with white spray paint

4. Secondary framing: C section purlin, tie bar, roof and wall support, bracing are formed as secondary framing

5. Steel warehouse crane: 4 cranes(lifting capacity: 2 ton)
