Heavy steel structure factory building features
1. Prefab factory building is used as industrial plant
2. Large span with 120 m
3. Total length is 198.1m
4. Eave height is 13.2 m
5. Ridge height is 18.6m
6. Column of steel factory building adopts Lattice steel column without anchor bolts
Prefab factory building description
1. Size: 198.1*120*13.2m (Length* Width* Eave Height), Ridge Height: 18.6m

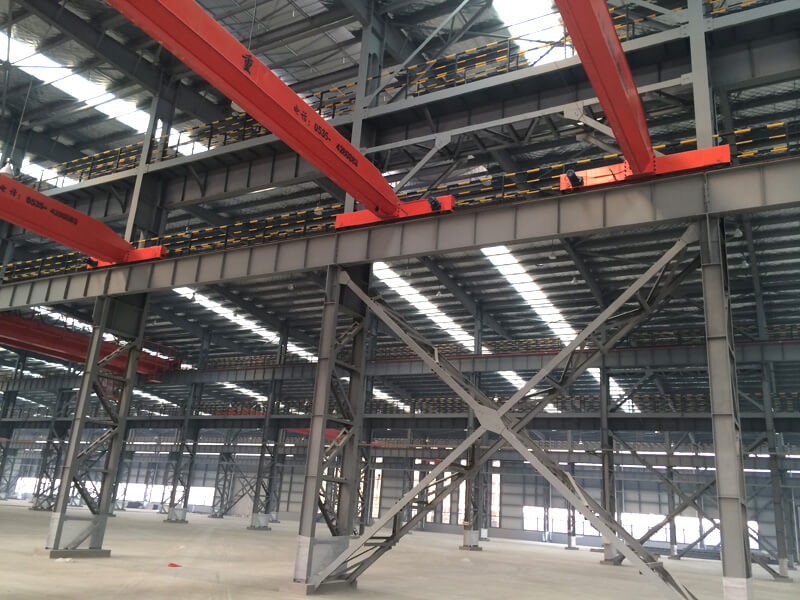

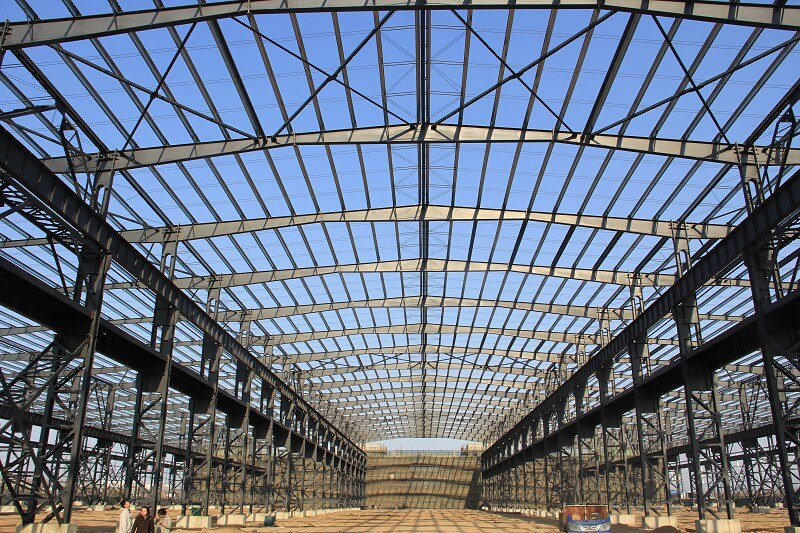

2. Primary steel framing: Lattice steel column without anchor bolts+ H section steel beam+Crane Beam
3. Column bracing: welded by channel steel and angle steel, is double layer installation
4. Roof horizontal bracing: continuous connection by angle steel

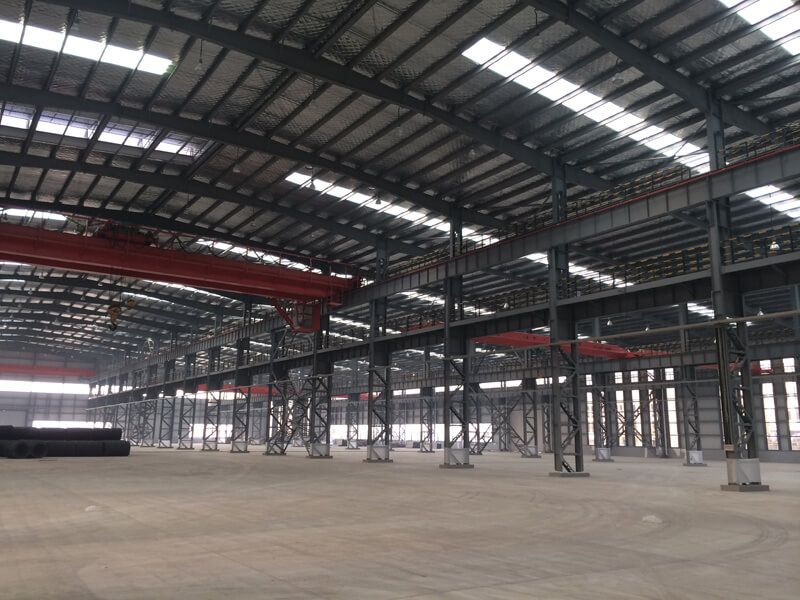

5. Crane beam: middle column crane beam is divided into two layers, all crane beams are installed walkway plate and guardrail and each walkway plate has two ladders and escalators.

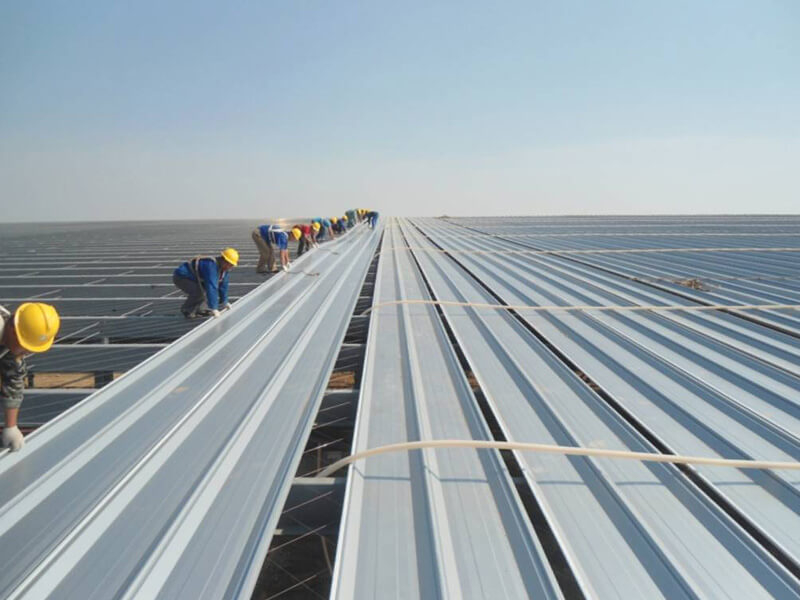

6. Roof cladding: single steel sheet+glasswool blanket with Aluminium-foil+wire mesh

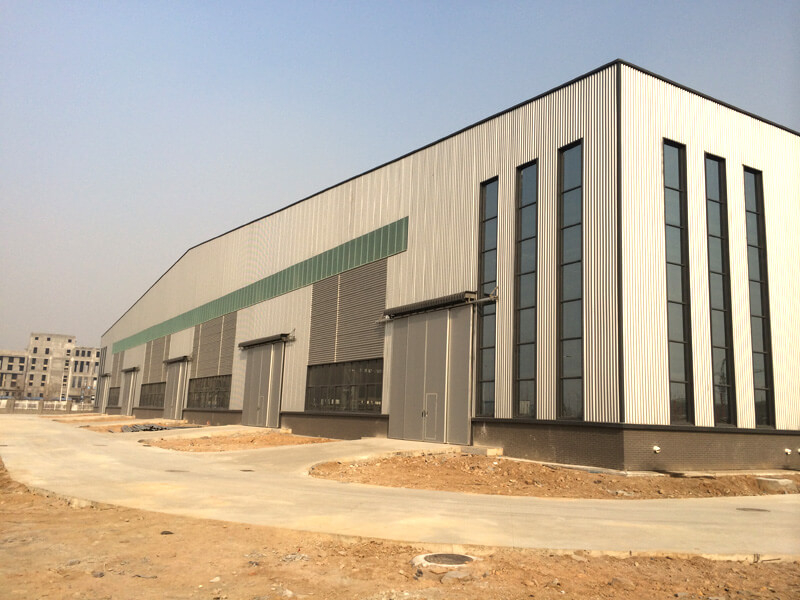

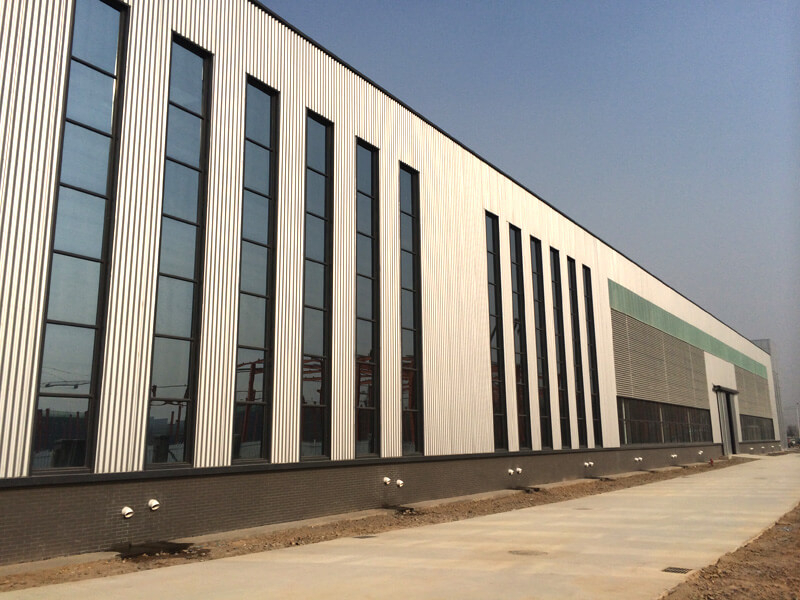

7. Wall cladding: V-780 type single corrugated steel sheet (length is up to 60.28 meters) +glass curtain
8. Lighting system: skylight panel
9. Roof vent: 36pcs Ventilator+8pcs E-clerestory
10. Window: Aluminium alloy Window+ tinted glass curtain
11. Prefab factory building door: sliding door
12. Rain canopy: arc awning designed by us.
