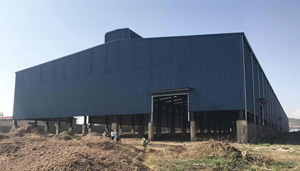

Project Name: Prefabricated Steel Structure Factory Shed
Location: Cotonou, Benin
Total Area: 12000 m2
Project Time: 2016
Prefabricated factory shed details:
This steel structure prefabricated shed project contains 3 factory sheds, 1# factory shed 6000M2 (60*100*10m), 2# factory shed 3000M2 (60*100*10m), 3# factory shed 3000M2 (60*100*10m), respectively used to manufacture PPGL, Cables and Steel Nails.
1. Technical parameter:
wind load-0.815KN/M2; roof live load-0.3KN/M2; total steel amount-380T
2. Primary steel framing: welded H section steel column and beam with 2 times mid-grey anti-rusting painting
3. Secondary framing: C Purlins, girts and eave struts are secondary structural members used to support the wall and roof panels
4. Wall materials: V-840 type wall steel sheet, silver
5. Roof materials: V-960 type roof steel sheet, silver
6. Prefabricated factory lighting system: Skylight panel and Ventilator
7. Crane: single bridge crane, 3 set 5 Ton and 2 set 10 Ton
8. Door: 6 set sliding door
9. Brick Wall: 2m high
