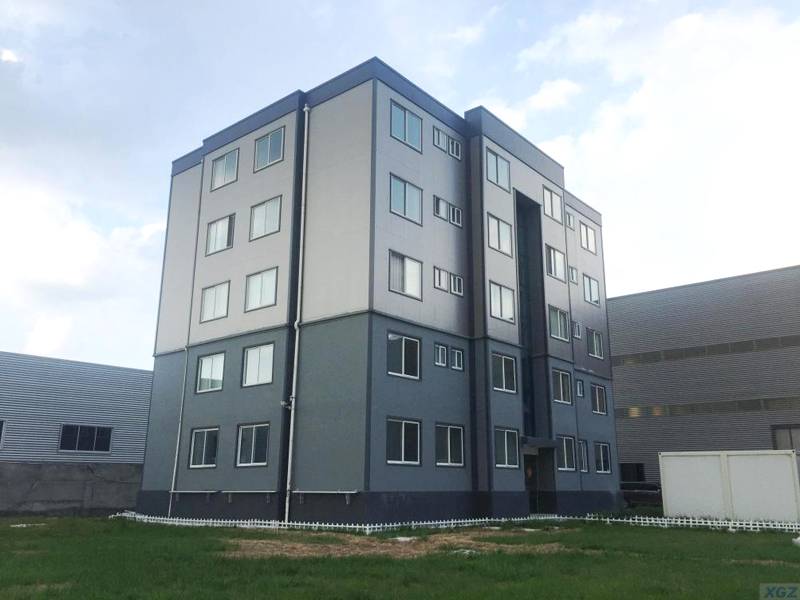

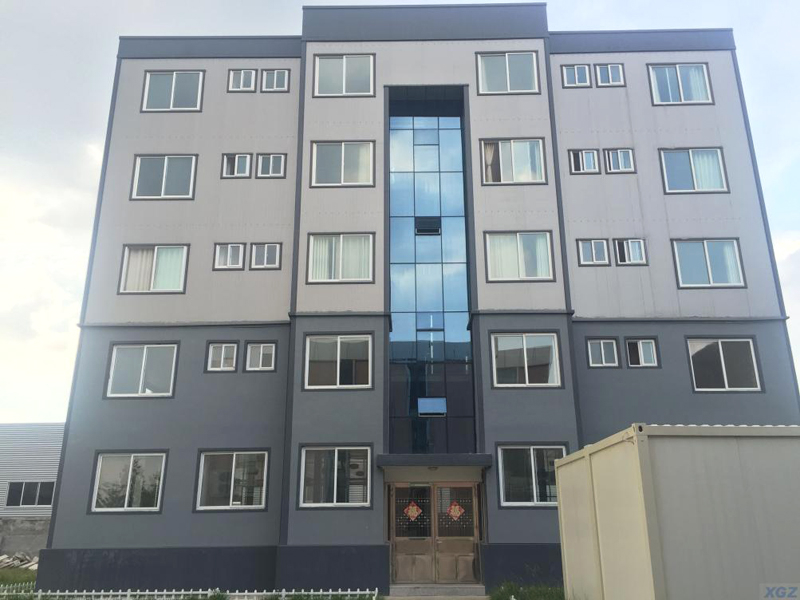

Prefab Steel Frame Apartment Building

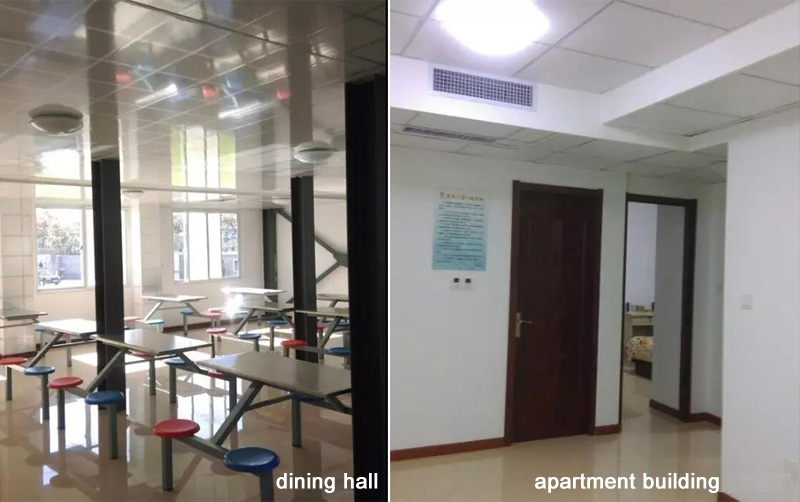

Prefab apartment building covers an area of 270 square meters, 5 floors in total, 1350 sqm totally, ground floor is a dining hall, the rest are for a dormitory and equipped with self-developed energy-saving central air-conditioning.

Steel apartment building features:

1. Fast installation

2. Energy-saving and environmental protection

3. Thermal insulation

4. Sound insulation and noise reduction

5. Steel apartment building is stable structure, earthquake resistance and wind resistance

6. Comfortable living

7. Prefab steel apartment has beautiful appearance

Prefab apartment building details:

Per story size: 20*13.5*16m(Length*Width*Height).

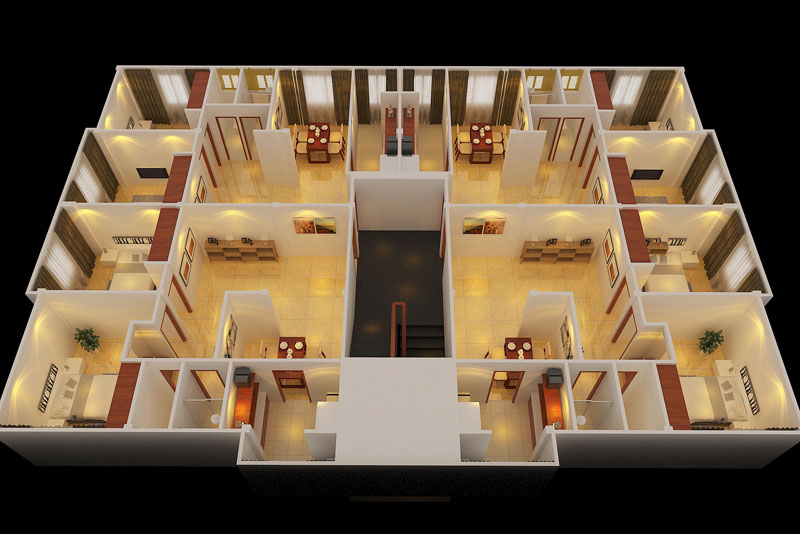

Steel apartment building configuration: 4 suites on each floor. The bathroom and toilet in each suite are separate rooms. The specific configuration is 2 rooms, 1 kitchen, 1 living room, 1 bath, 1 toilet.

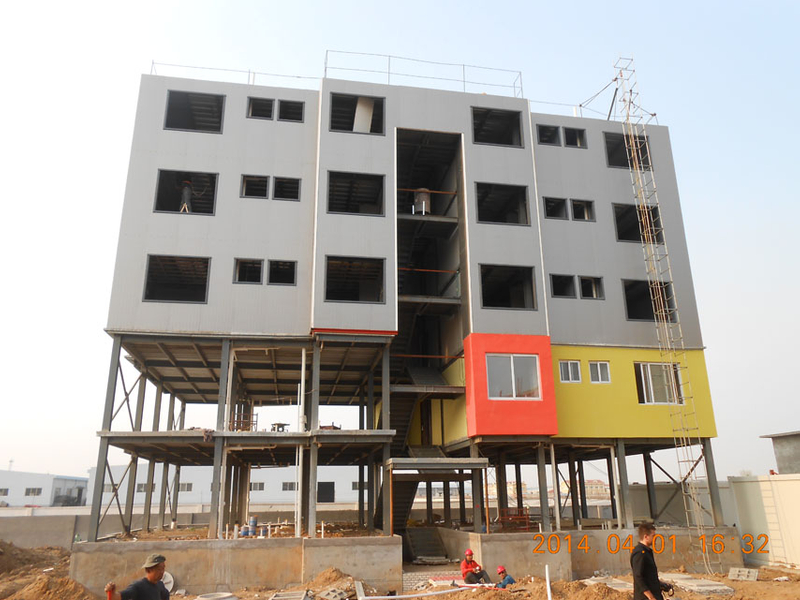

Main framing: column, Beam: welded H section steel with anti-rusting painting

Purlin: galvanized purlins

Floor material: H type steel beam + floor Deck+concrete

Wall cladding materials: Ground floor and second floor - Cement foam board; three to five story - EPS sandwich panel

Service: designing, manufacturing, installation and decoration.

Used: Our company staff dormitory
